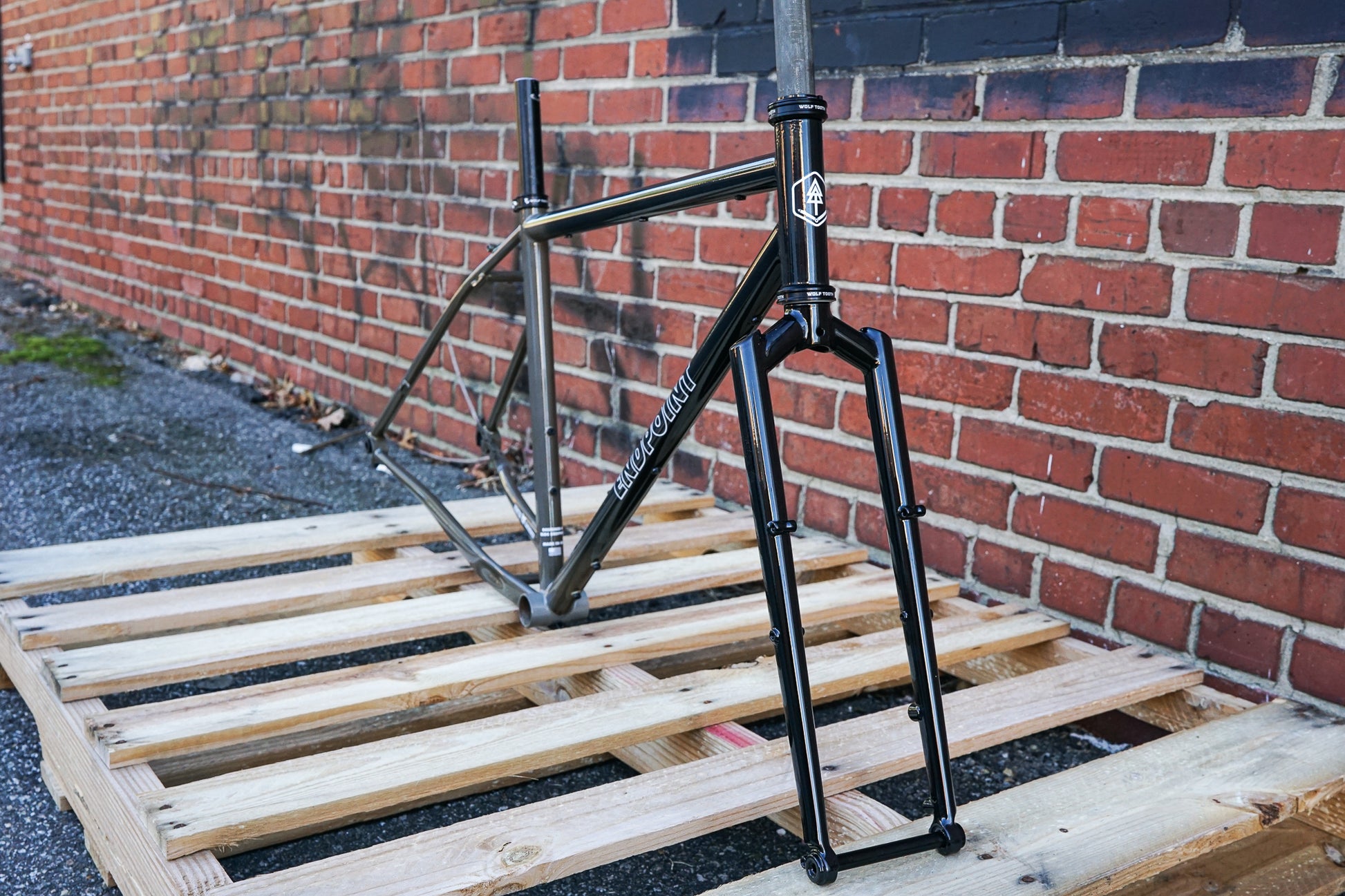

Hunter Gatherer Frameset
Custom Built in the USA
Our custom frames are designed by Ride Endpoint and hand-built in Colbert, WA by Elephant Bikes. Please allow 6-8 weeks for Delivery.
A legend himself, Steve Crandall once rode to Philly on a clapped-out Nishiki mountain bike and it was 'almost the coolest shit ever.' During that ride, Steve dreamt of a different bike—a bike that would work way better than his old MTB and turn the ride into something way more rad. A few years ago we worked with Steve and the FBM Bike Co. to design and build the bike from that dream. That bike was the Hunter Gatherer, and this is the first big progression on that initial design.
Frame Design

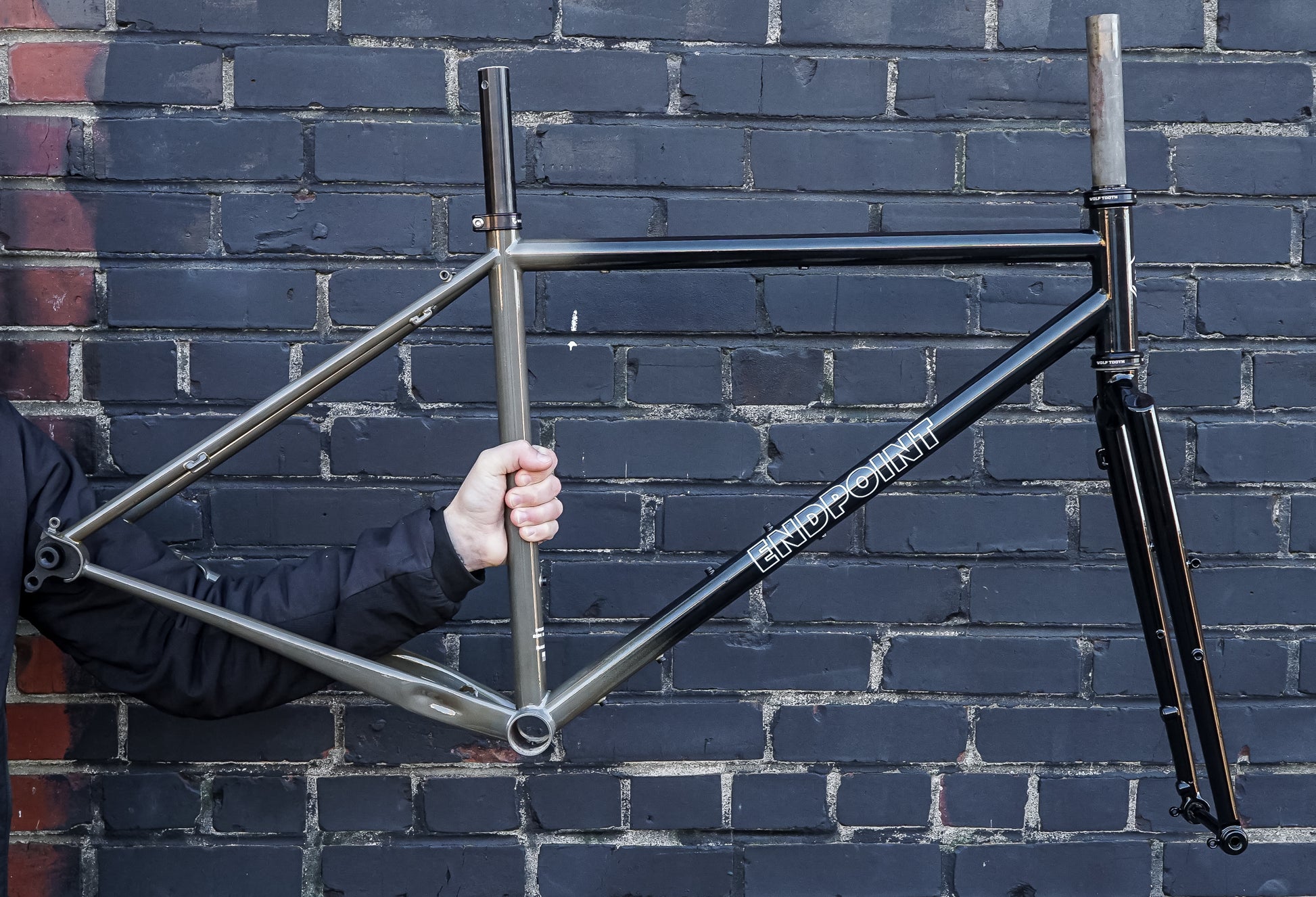

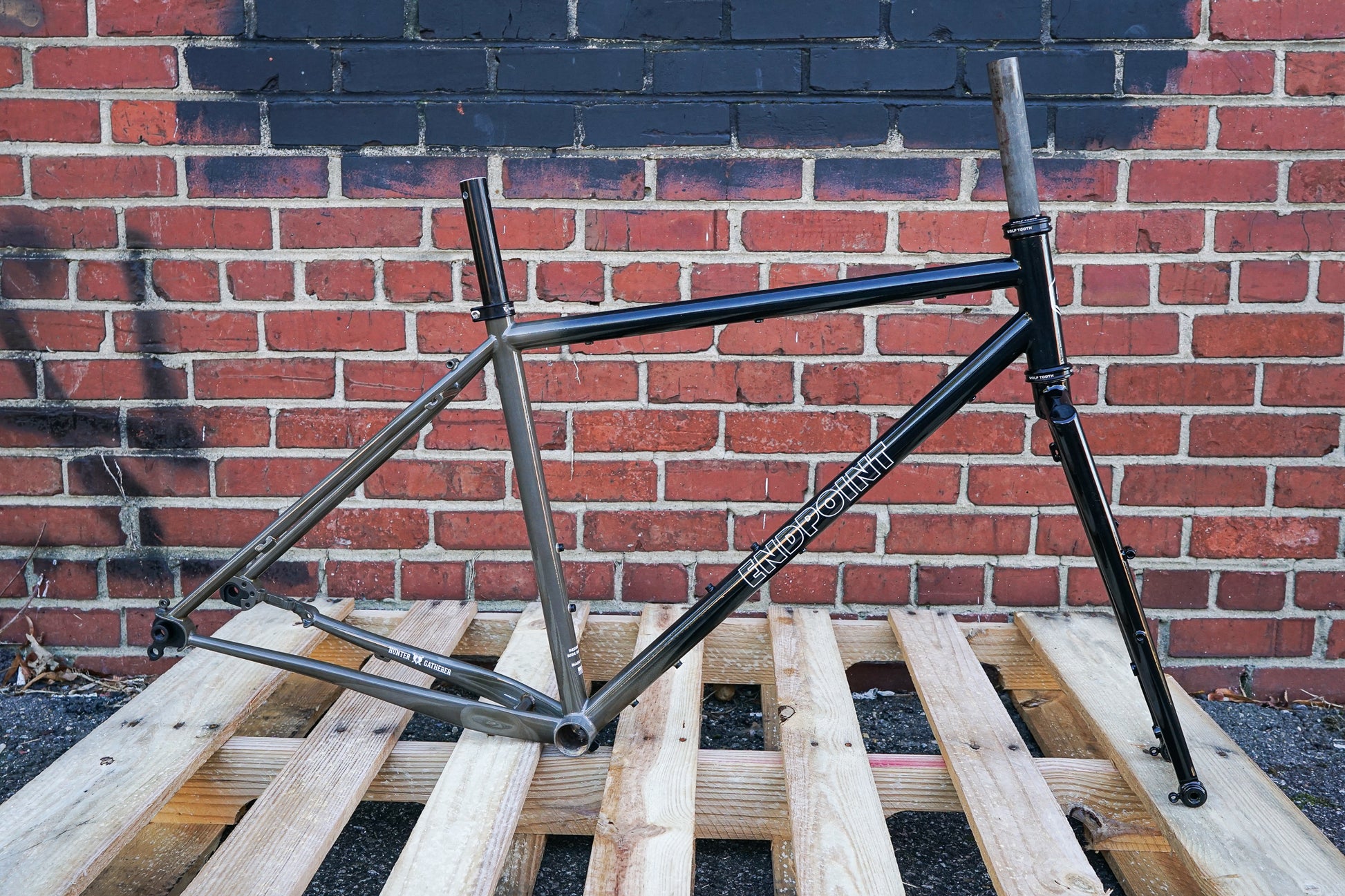

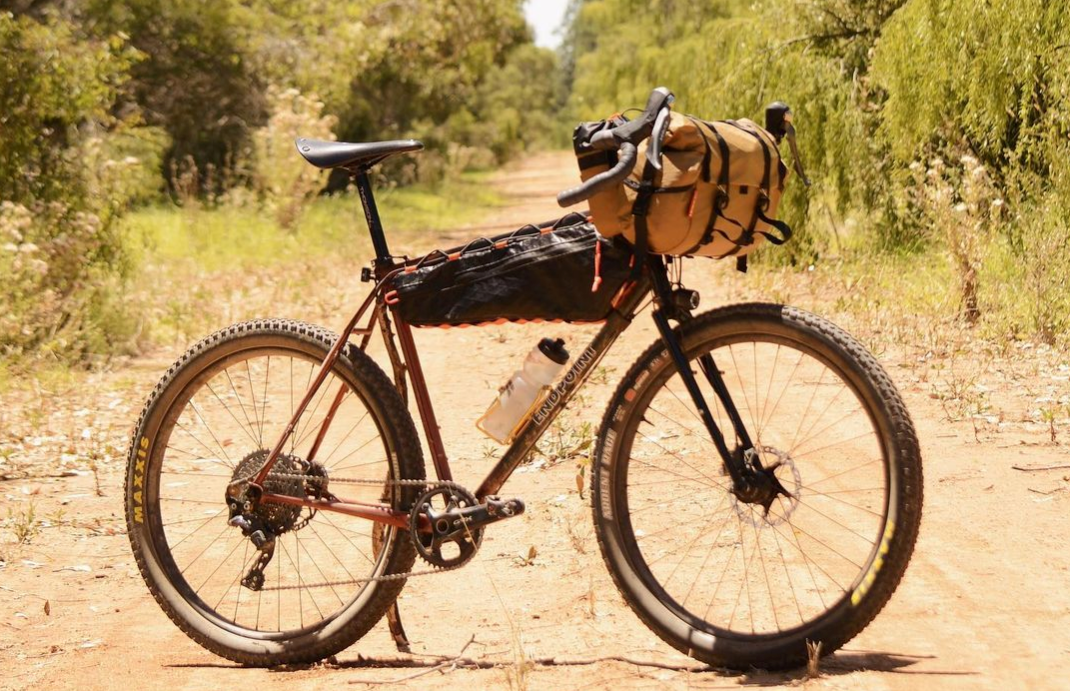

The Hunter Gatherer is designed with more utility and long-range, technical mixed surface, loaded riding in mind. The Hunter Gatherer is a Columbus tubed steel frame designed for efficiency and comfort over the long haul with a geometry that puts the rider in a more relaxed position that translates to comfort and control while cruising through multi-day adventures over more aggressive terrain.
Tire Clearance & Wheel Standard

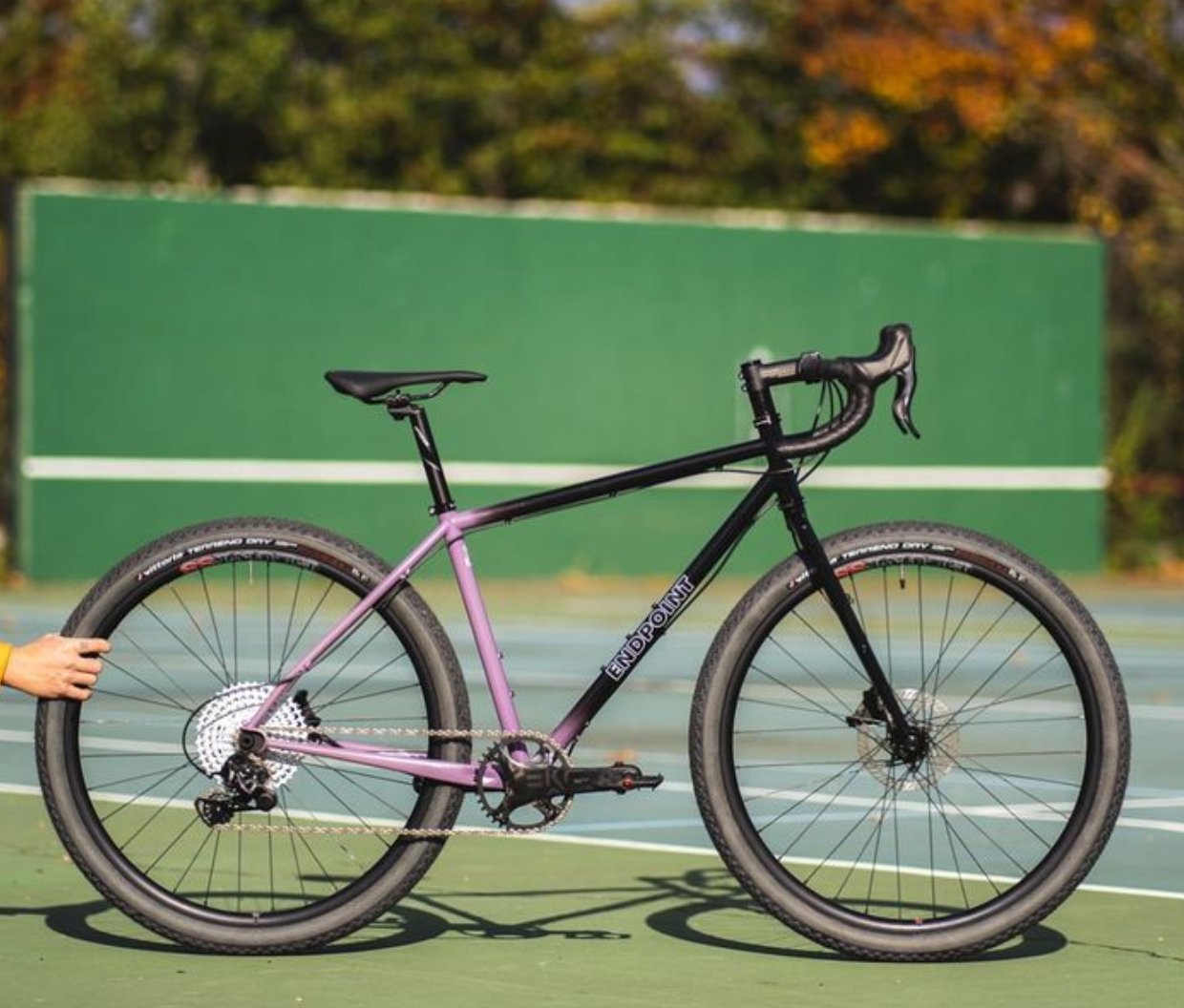

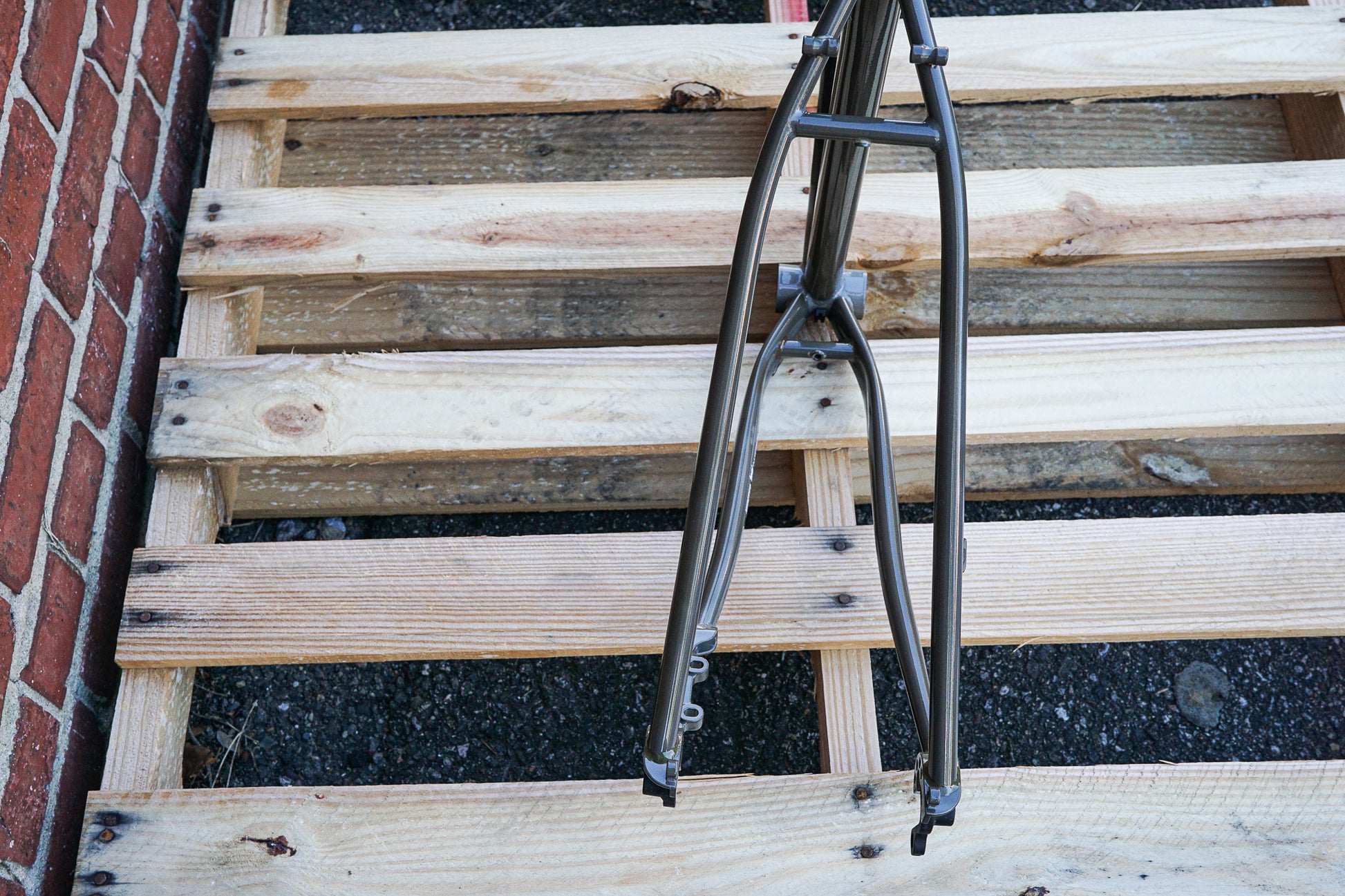

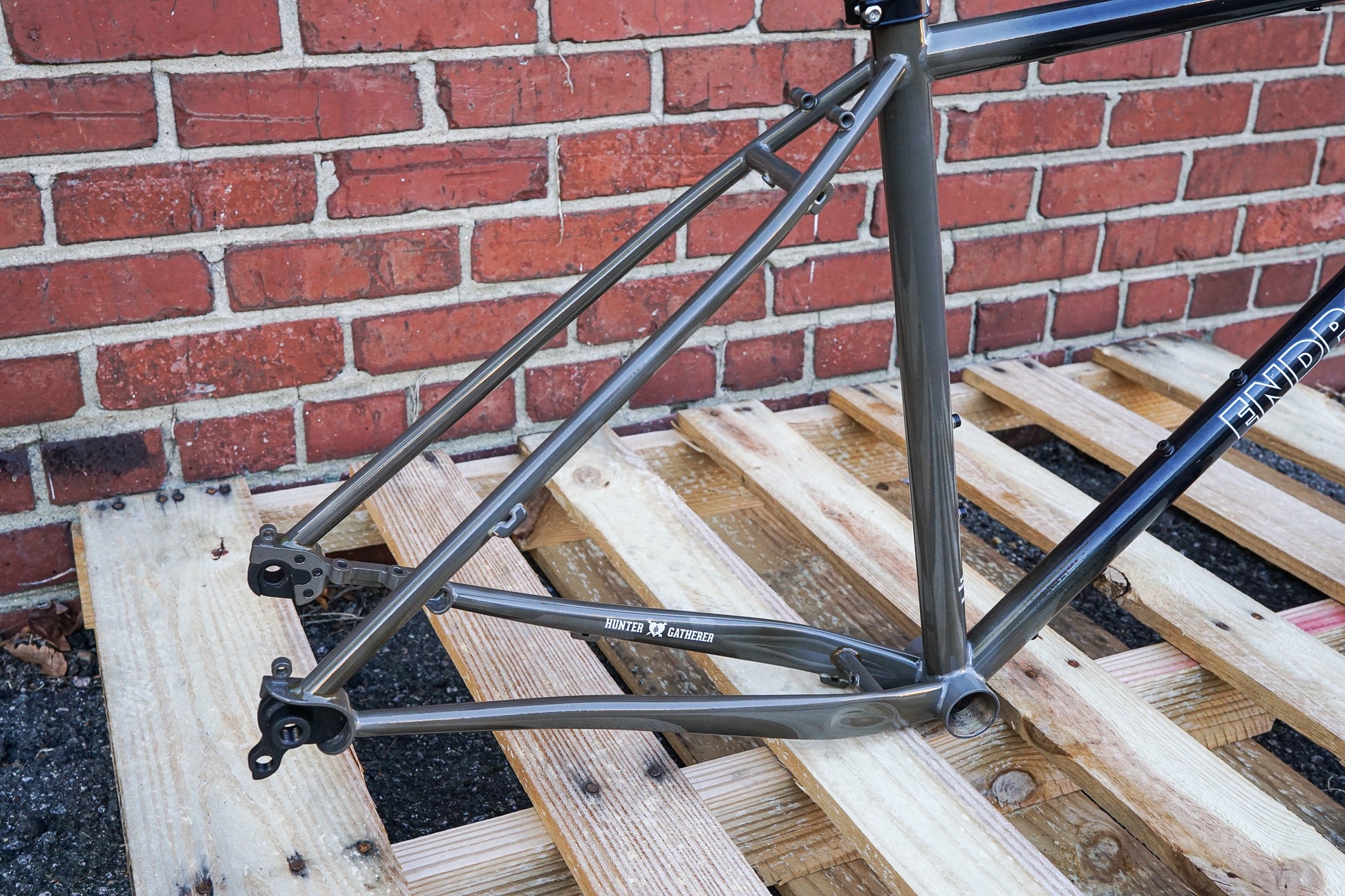

Shorter 435 chainstays maintain responsiveness while still providing improved clearance for 27.5x2.4 tires. The frame utilizes 12x142 thru-axle dropouts for the rear wheel and a 12x100 thru-axle dropout with our Search Light fork. The low trail fork is perfect for loaded riding without compromising control or confidence in handling.
Cargo & Fenders

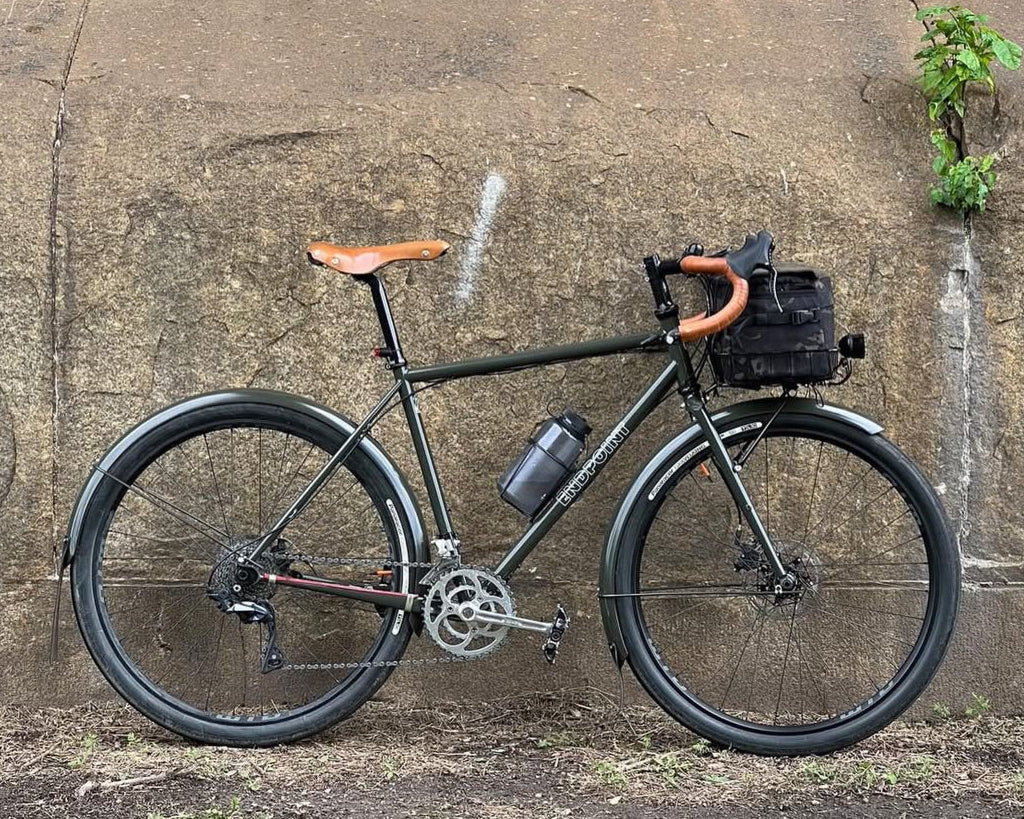

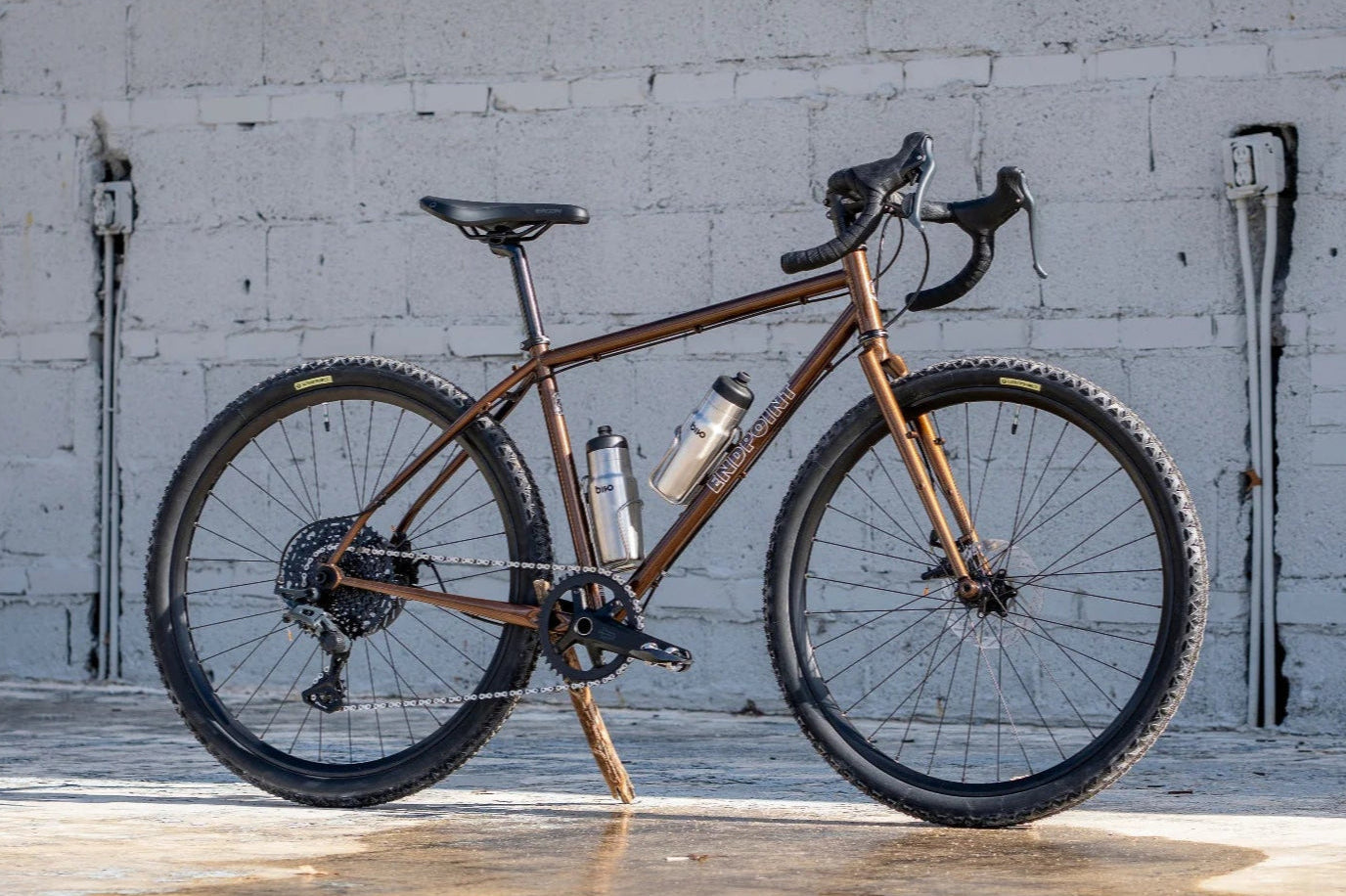

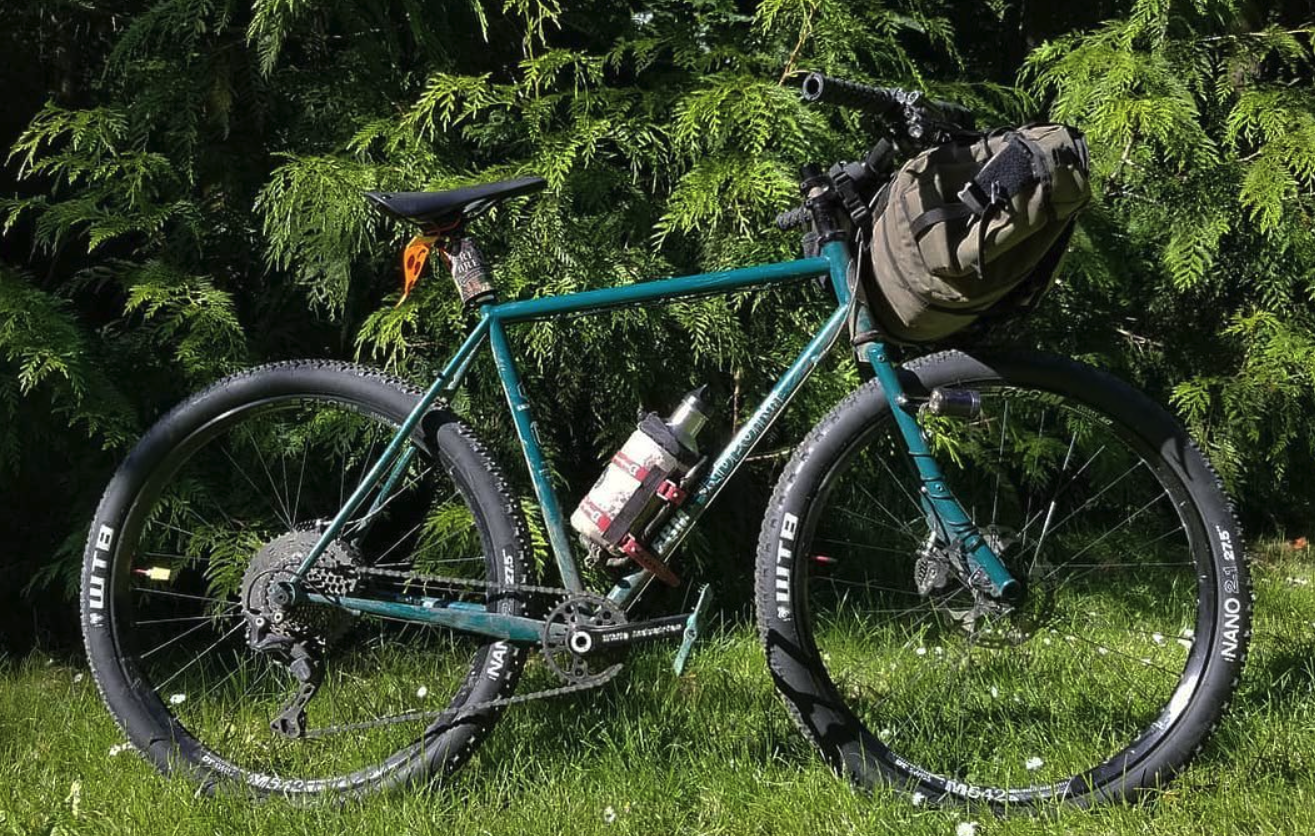

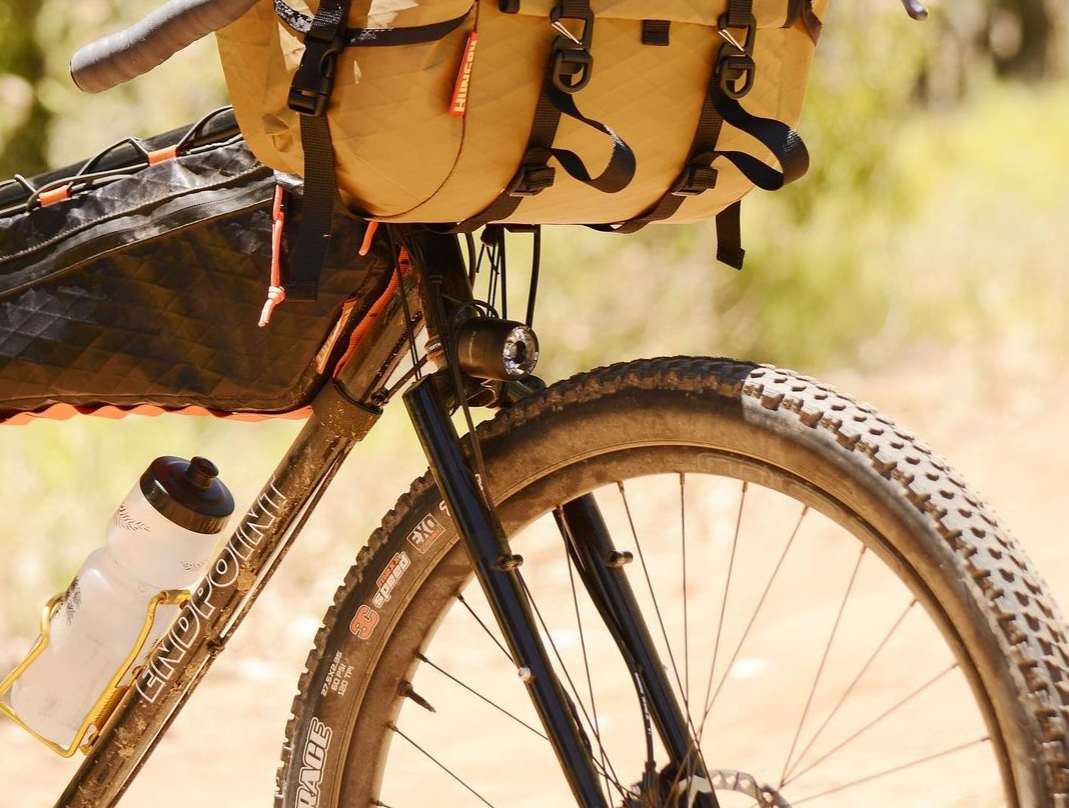

The Hunter Gatherer has rear triangle and fork mounts for fenders and racks and is equipped with three bottle cages, mounted low to free up enough space for a frame bag.
The Hunter Gatherer is designed by Ride Endpoint and hand-built in Colbert, WA by Glen Copus at Elephant Bikes. Get one!
For questions about frame, fork, or custom build options, please Contact Us.
Frame Weight: 4 lb 10 oz - Size Small
Bottom Bracket: 68mm English Threaded
Headset: 1 1/8 Threadless
Front Axle: 12x100
Rear Axle: 12x142
Max Tire Clearance: 27.5 x 2.4
Max Rotor Size: 160F/160R
Seatpost: 27.2mm
Seatpost Clamp: 30.0mm
Fork Axle: 12x100mm
Rear Axle: 12x142mm (12x1.5 thread pitch, pre-2019 12x1.0 thread pitch)
Tube specifications:
28.6 x .8/.5/.8 Columbus Zona top tube
31.8 x .8/.5/.8 Columbus Zona down tube
28.6 Columbus Zona seat tube
4130 chromoly rear triangle
Size |
SM |
MD |
LG |
XL |
XXL |
Reach |
365 |
375 |
385 |
395 |
405 |
Stack |
550 |
575 |
605 |
630 |
645 |
Top Tube Horizontal |
533 |
550 |
570 |
588 |
602 |
Head Tube |
123 |
140 |
180 |
200 |
220 |
Seat Tube Center to Center |
450 |
500 |
520 |
540 |
560 |
Fork Axle to Crown |
396 |
396 |
396 |
396 |
396 |
Fork Rake |
70 |
70 |
70 |
70 |
70 |
Chainstay Length |
435 |
435 |
435 |
435 |
435 |
Head Angle |
73 |
73 |
73 |
73 |
73 |
Seat Angle |
73 |
73 |
73 |
73 |
73 |
Bottom Bracket Drop |
65 |
65 |
65 |
65 |
65 |
Trail |
37 |
37 |
37 |
37 |
37 |
