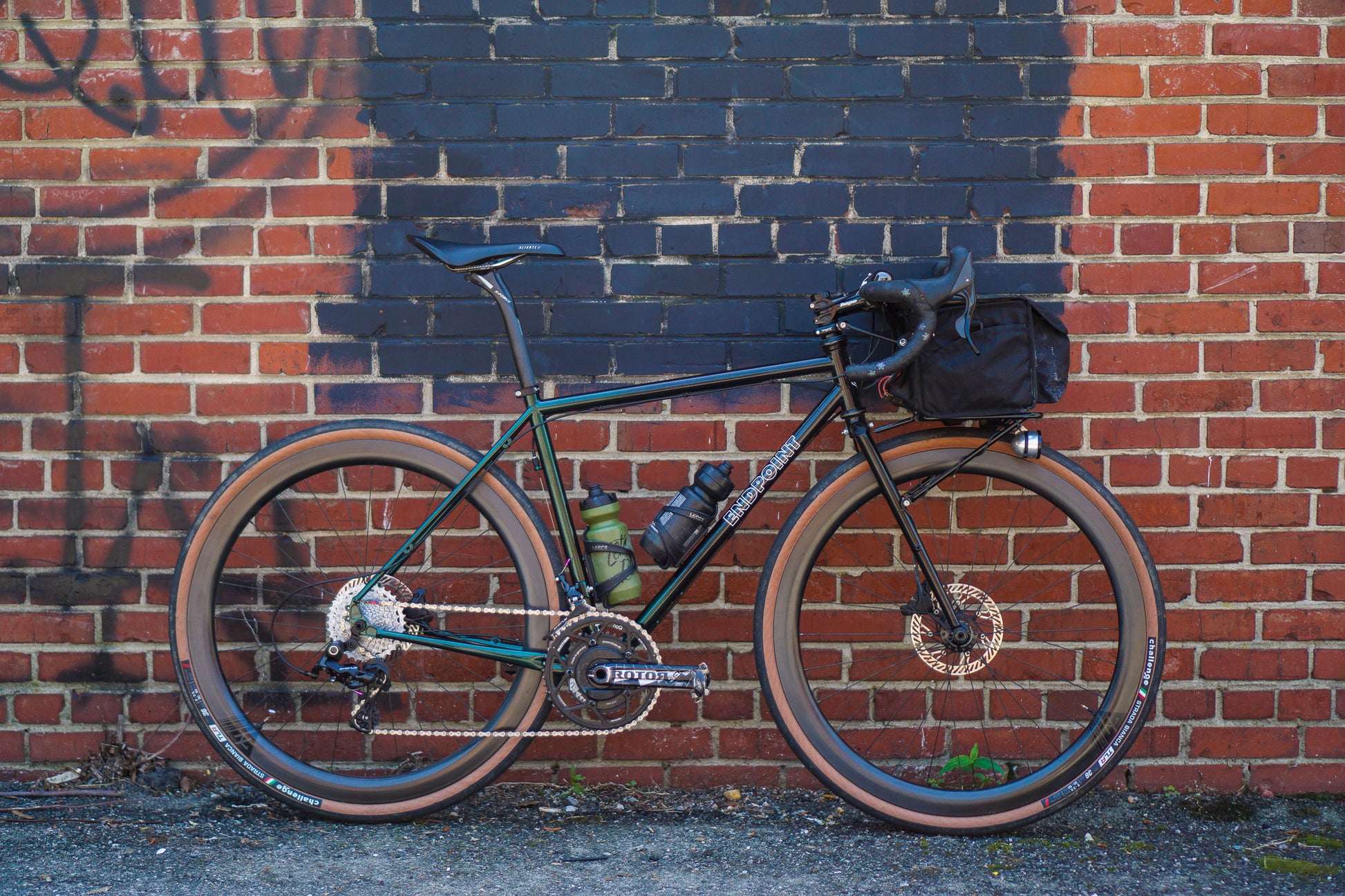

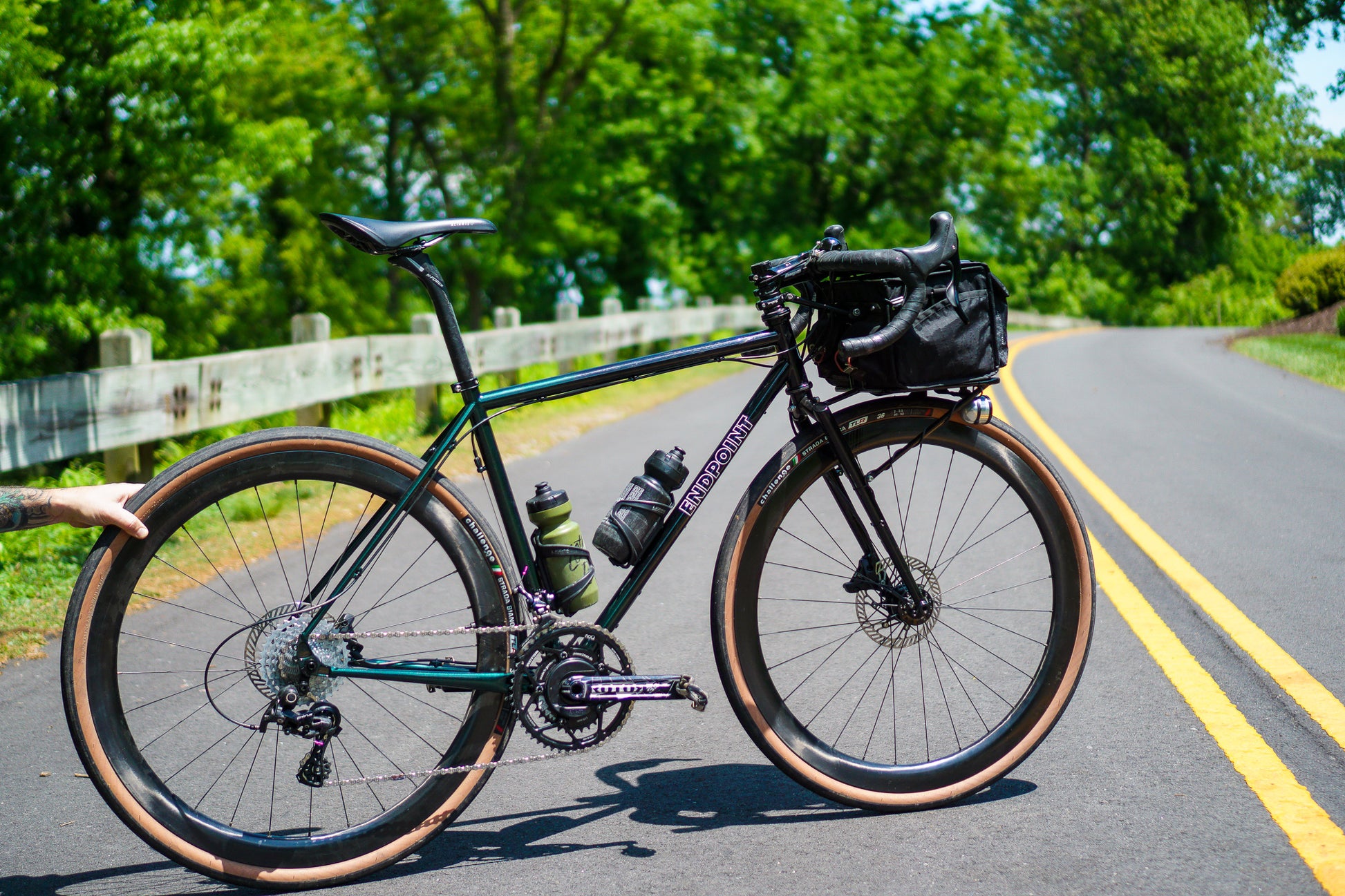

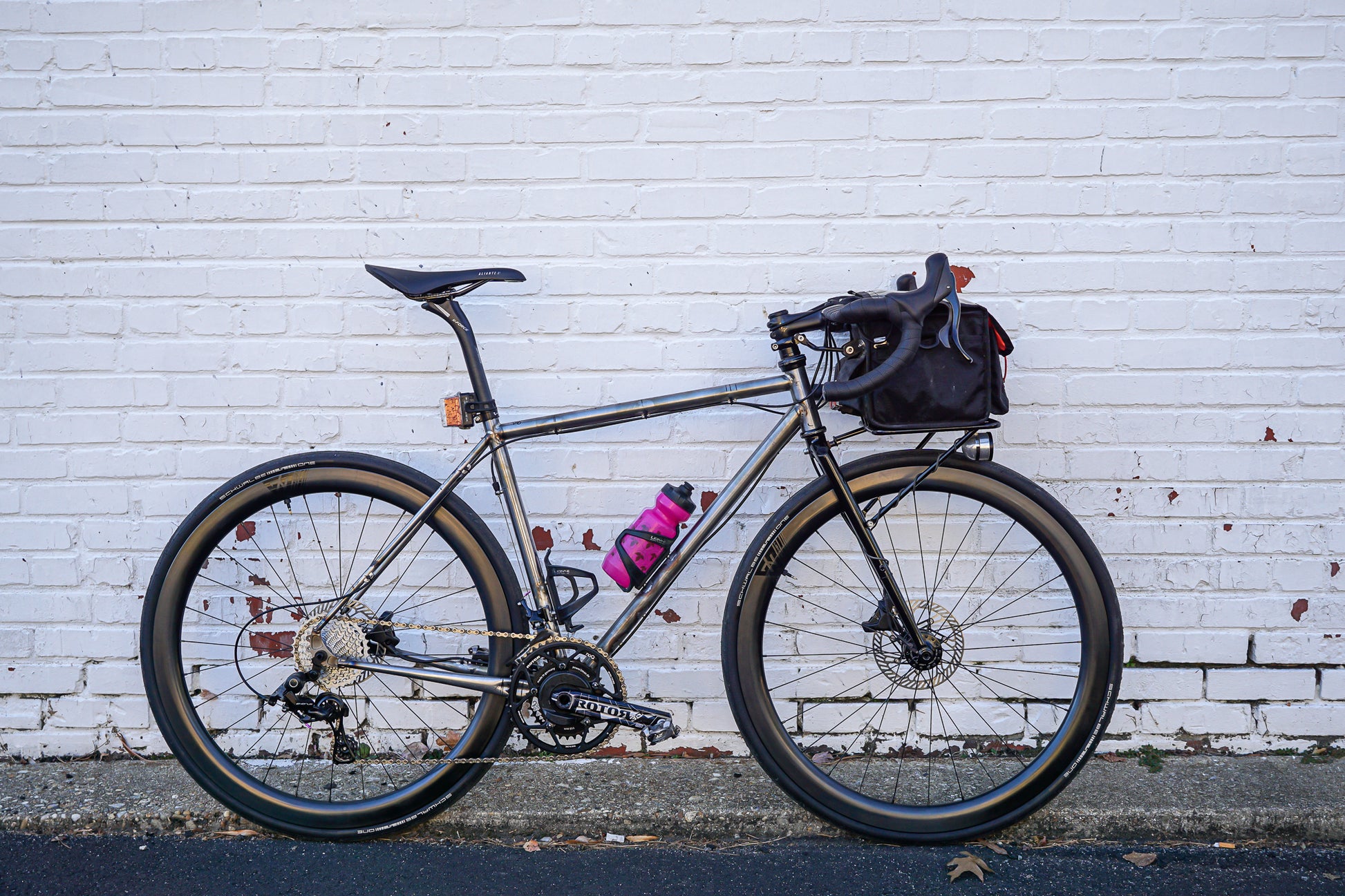

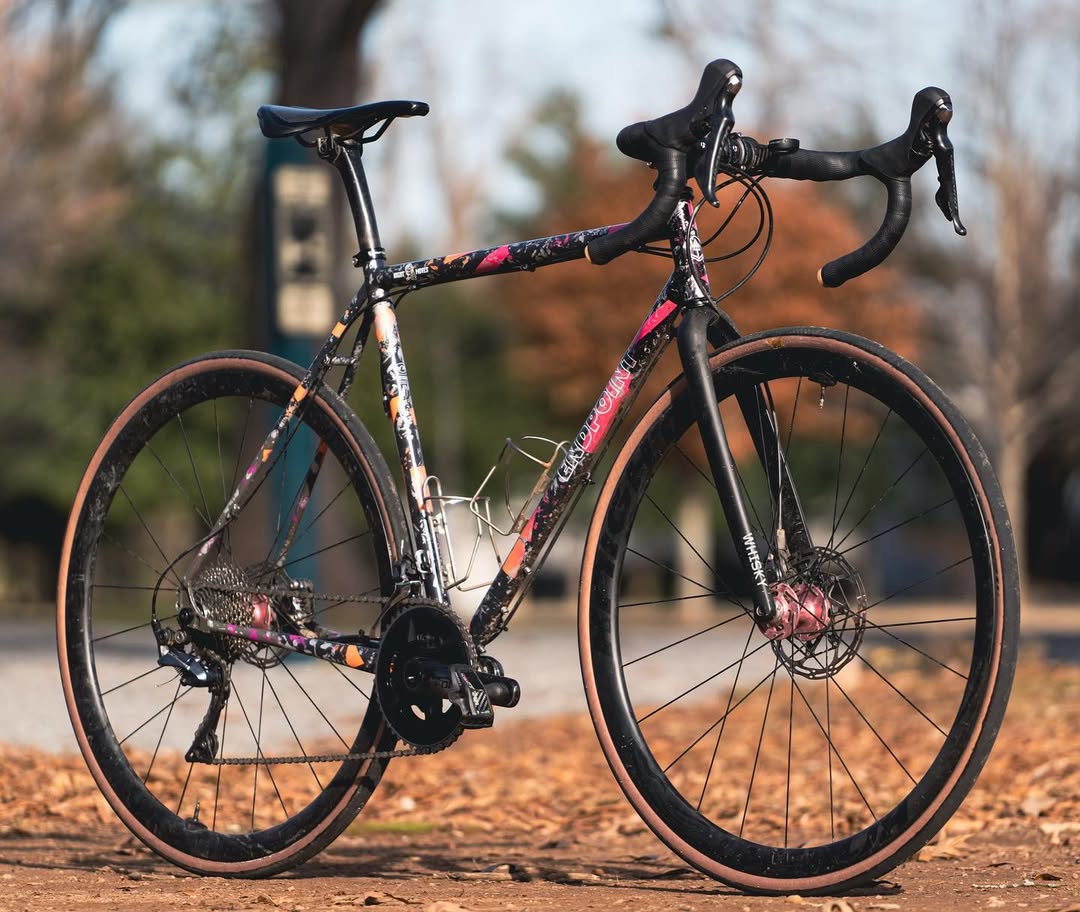

Rando-rocketship, endurance all-road, ultralight tourer; affectionately referred to as the wiggle bike, the Night Moves is all of those things.
This frame is designed with smaller diameter Columbus Zona and Life double-butted tubes for a springy and all-day cush ride that doesn't compromise efficiency. Without too much deviation from our proven Coffee Grinder geometry, a marginally less aggressive position is achieved to keep you comfortable and efficient on those all-day (and night) rides.
Couldn't load pickup availability
Interested in building a complete?
Check out the complete builder and we will work with you on a custom build.
Geometry & Ride Design
Geometry & Ride Design

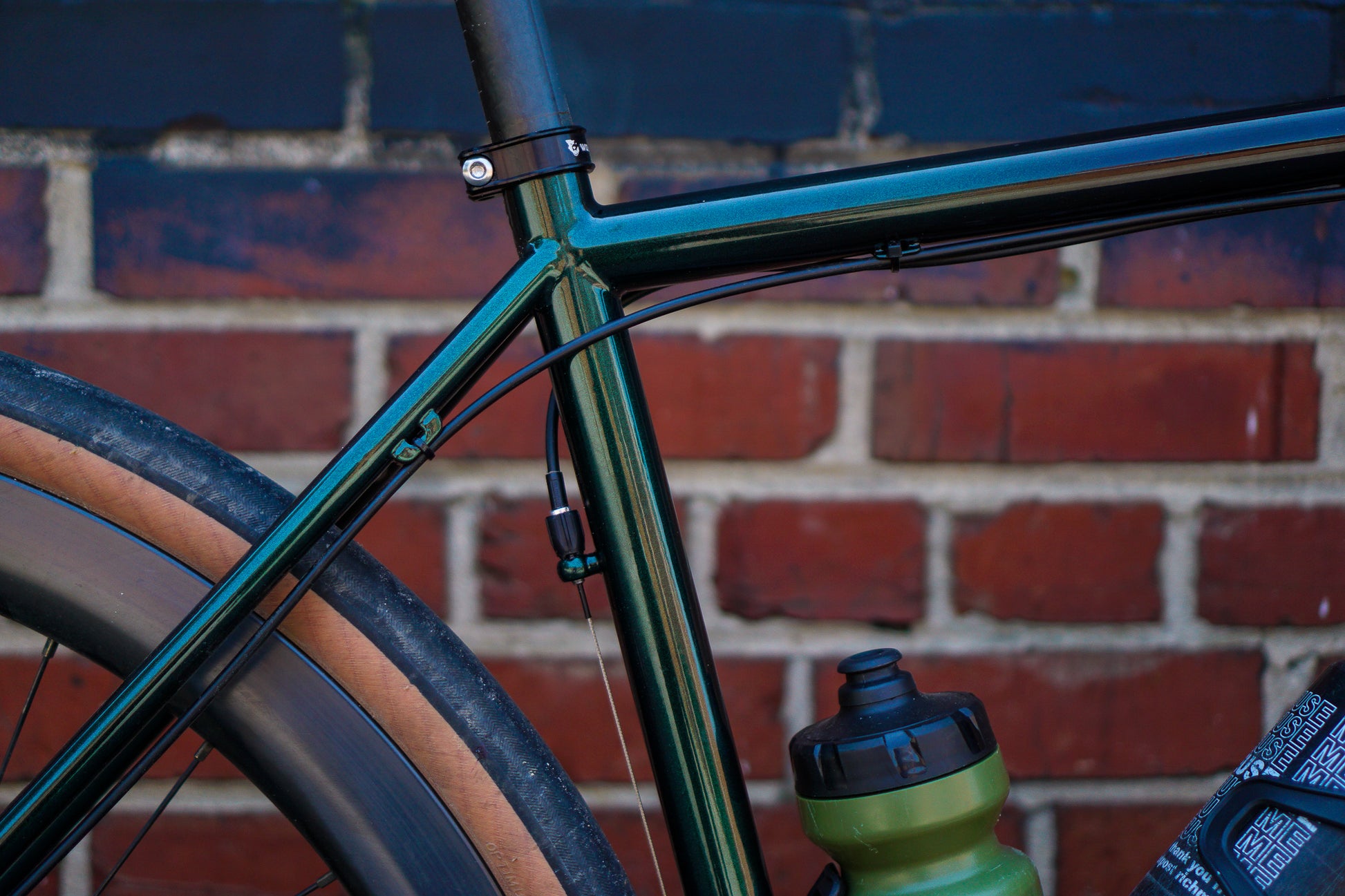

This frame is designed with smaller diameter Columbus Zona and Life double-butted tubes for a springy and all-day cush ride that doesn't compromise efficiency. Without too much deviation from our proven Coffee Grinder geometry, a marginally less aggressive position is achieved to keep you comfortable and efficient on those all-day (and night) rides.
Tire Clearance
Tire Clearance

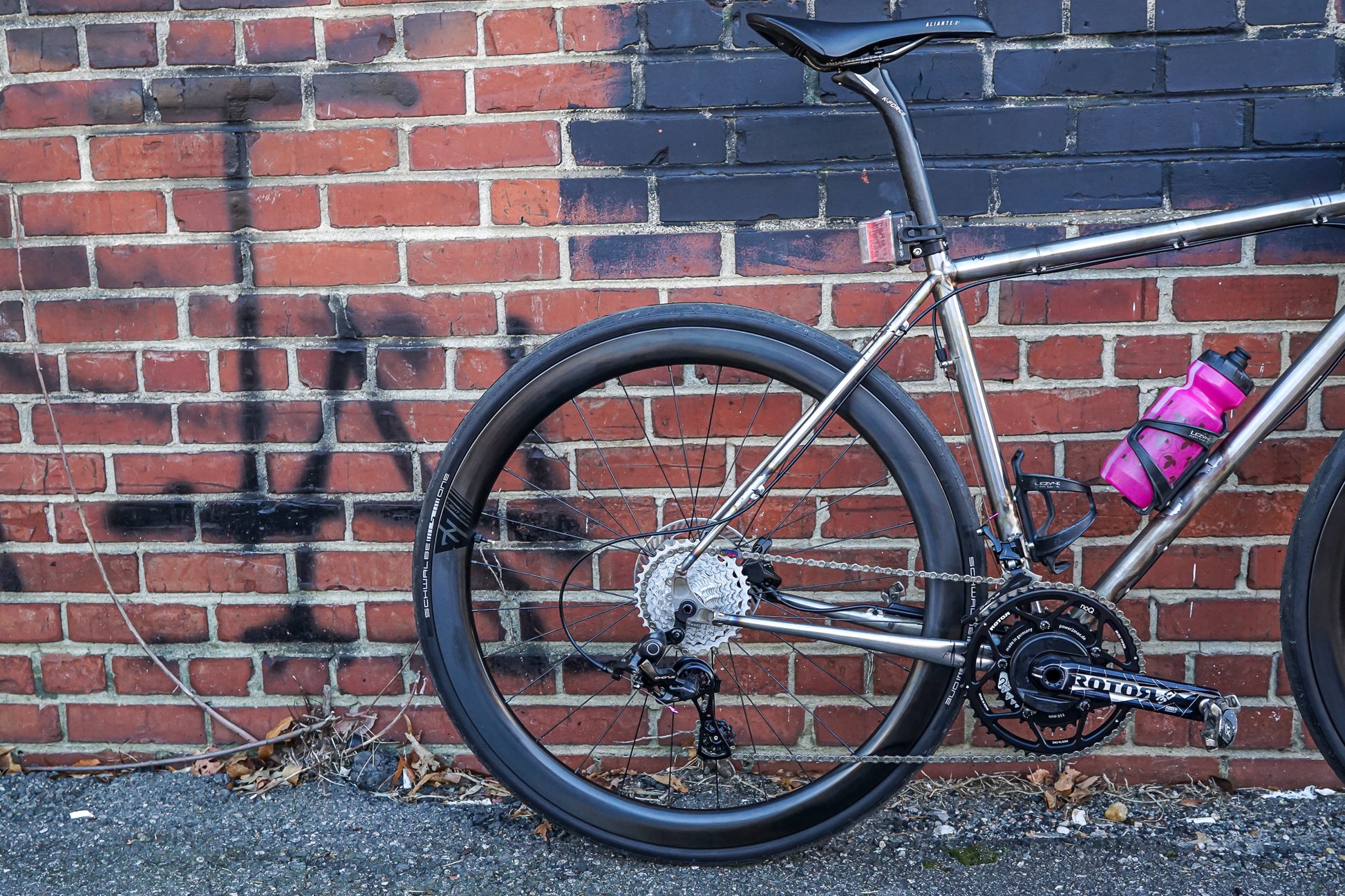

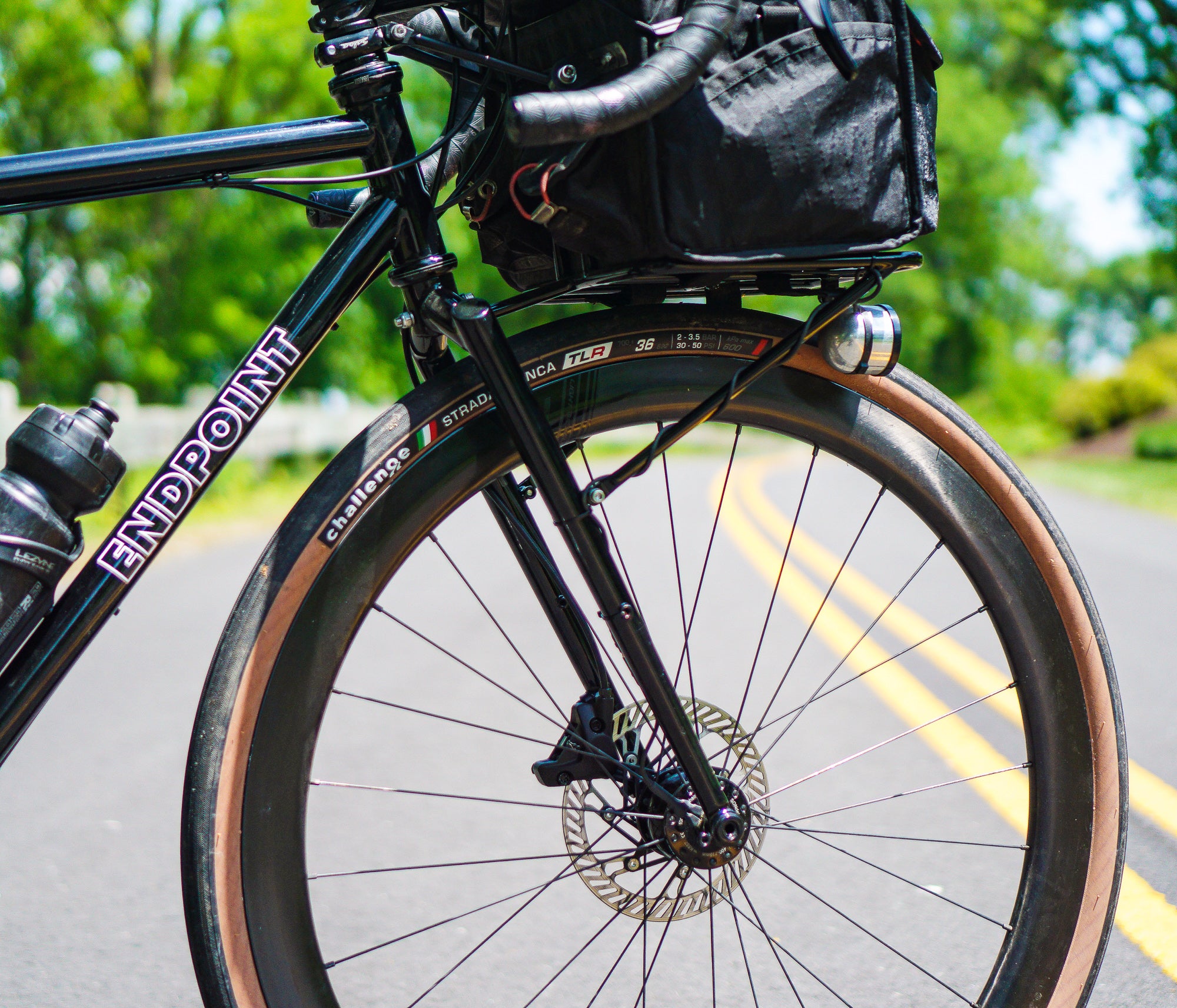

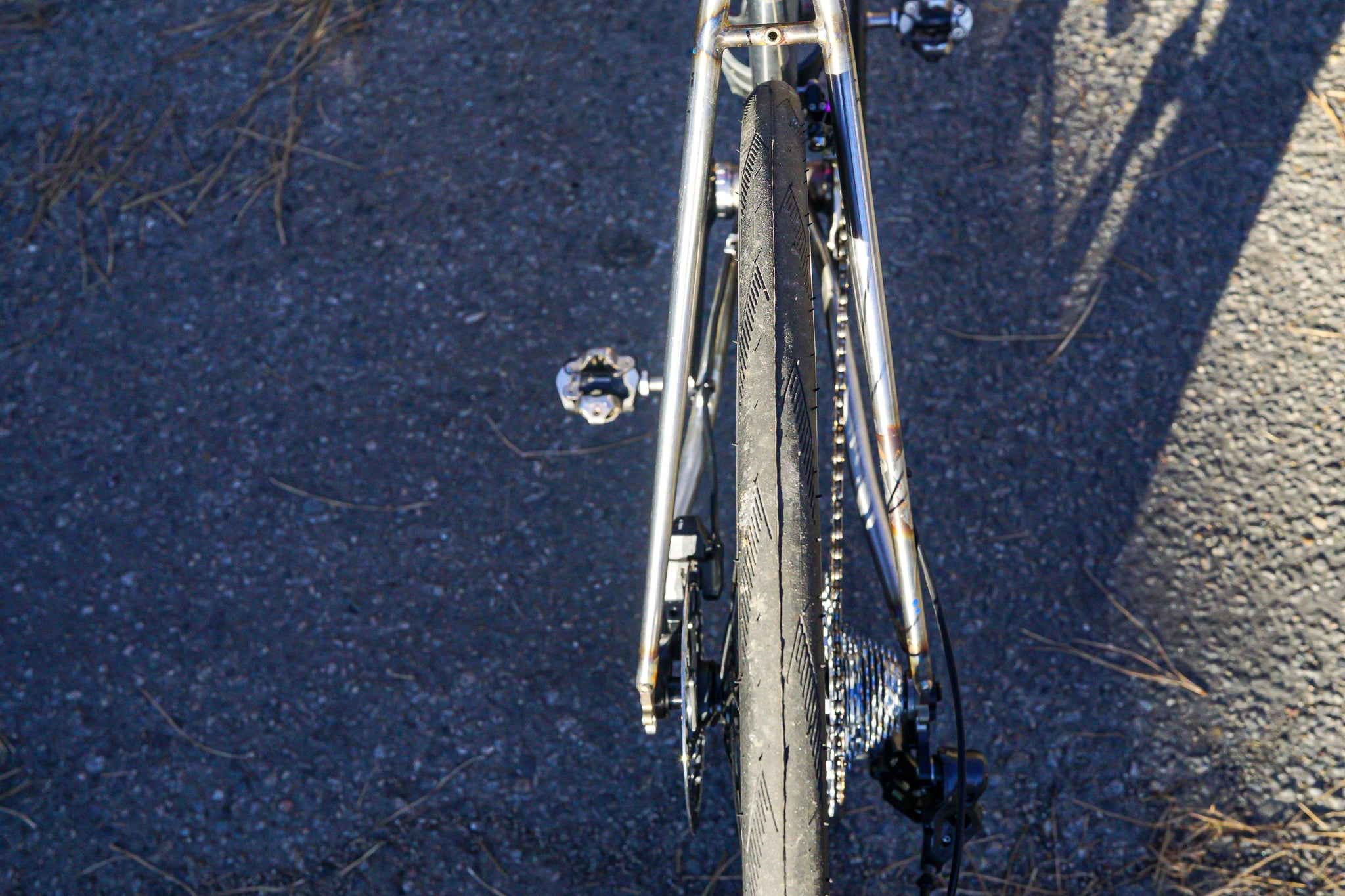

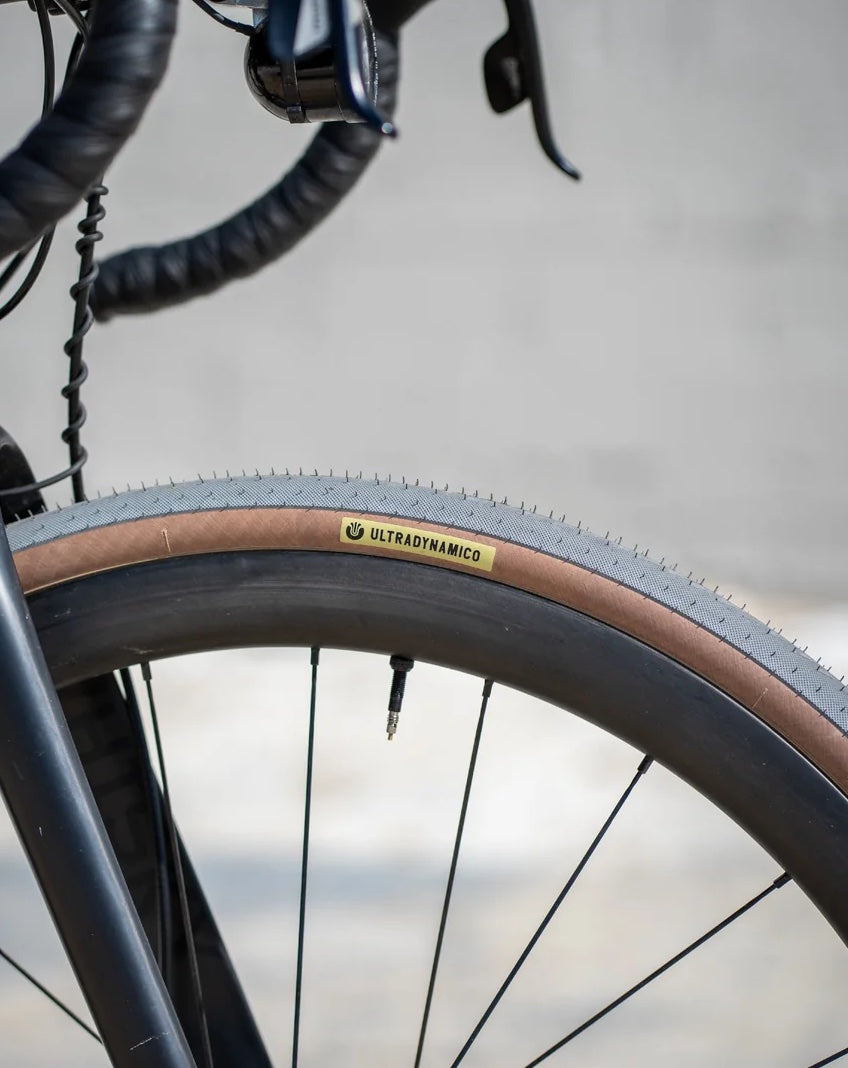

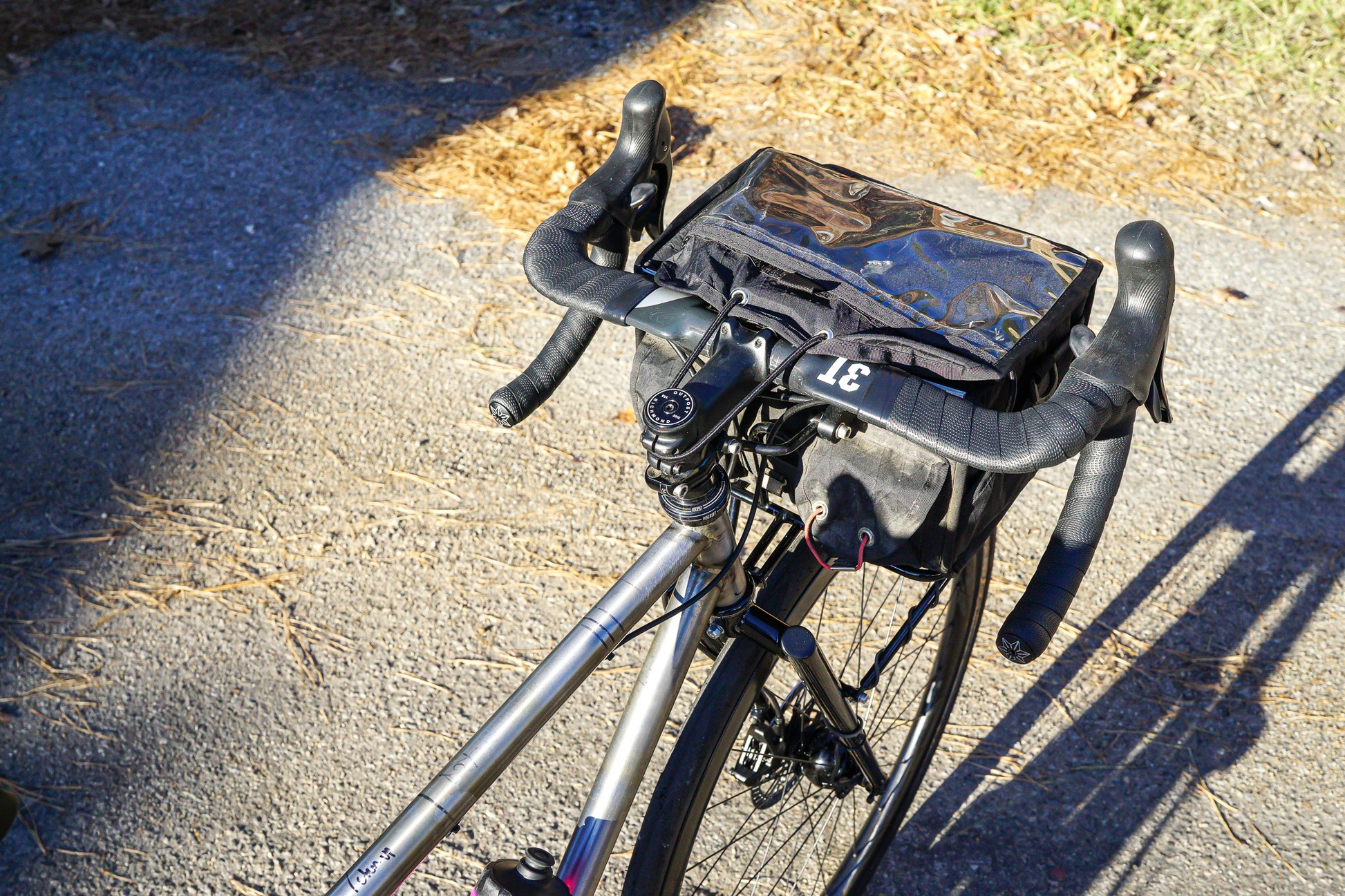

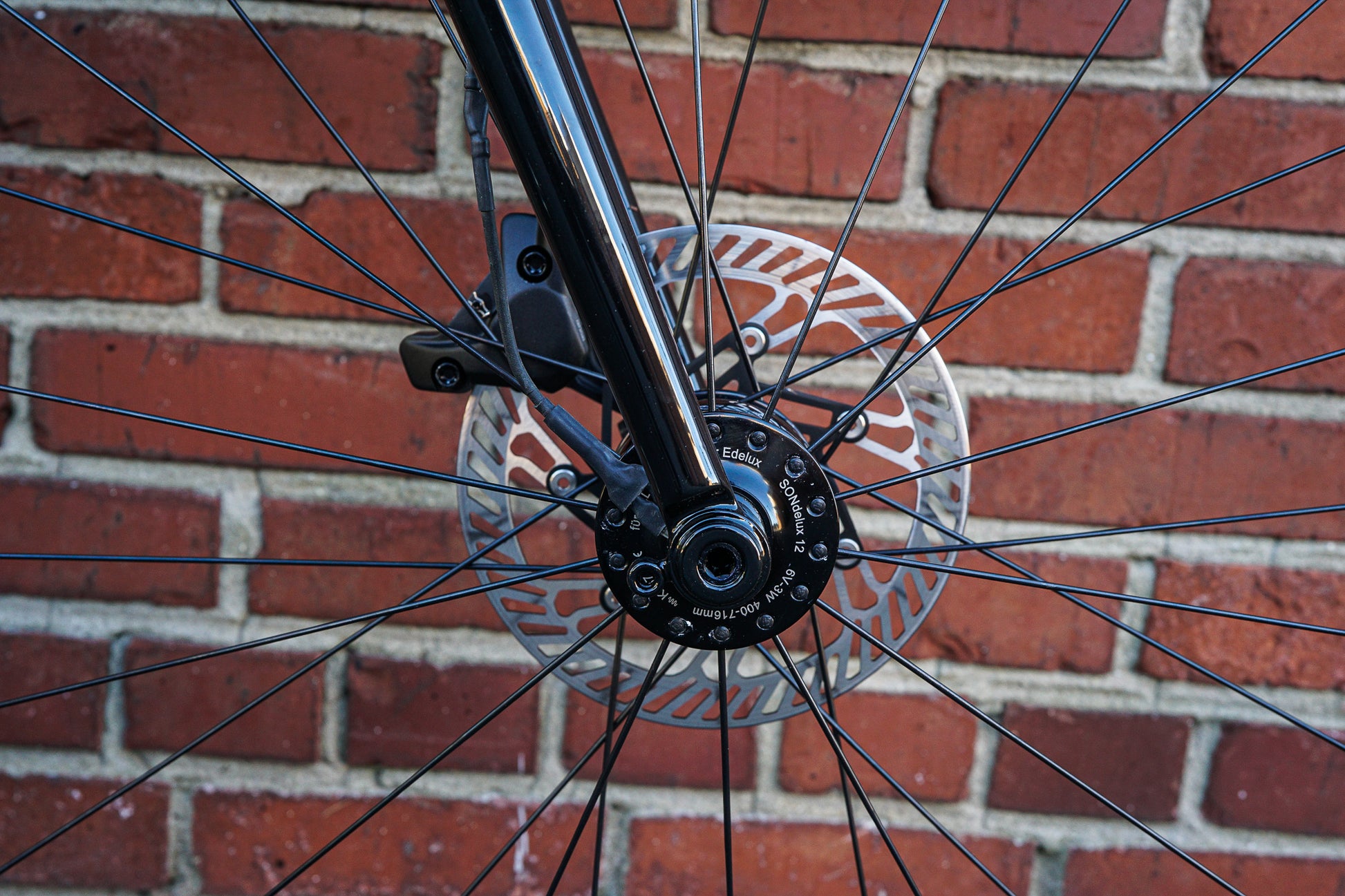

Shorter 418mm chainstays maintain responsiveness while still providing recommended clearance for 700x38 (32 with fenders) or 27.5x48 tires. The frame utilizes a 12x142 thru-axle for the rear wheel and a 12x100 thru-axle with our Search Light fork. Our Searchlight low trail fork is perfect for front-loaded riding without compromising control or confidence in handling.
Cargo & Fenders
Cargo & Fenders

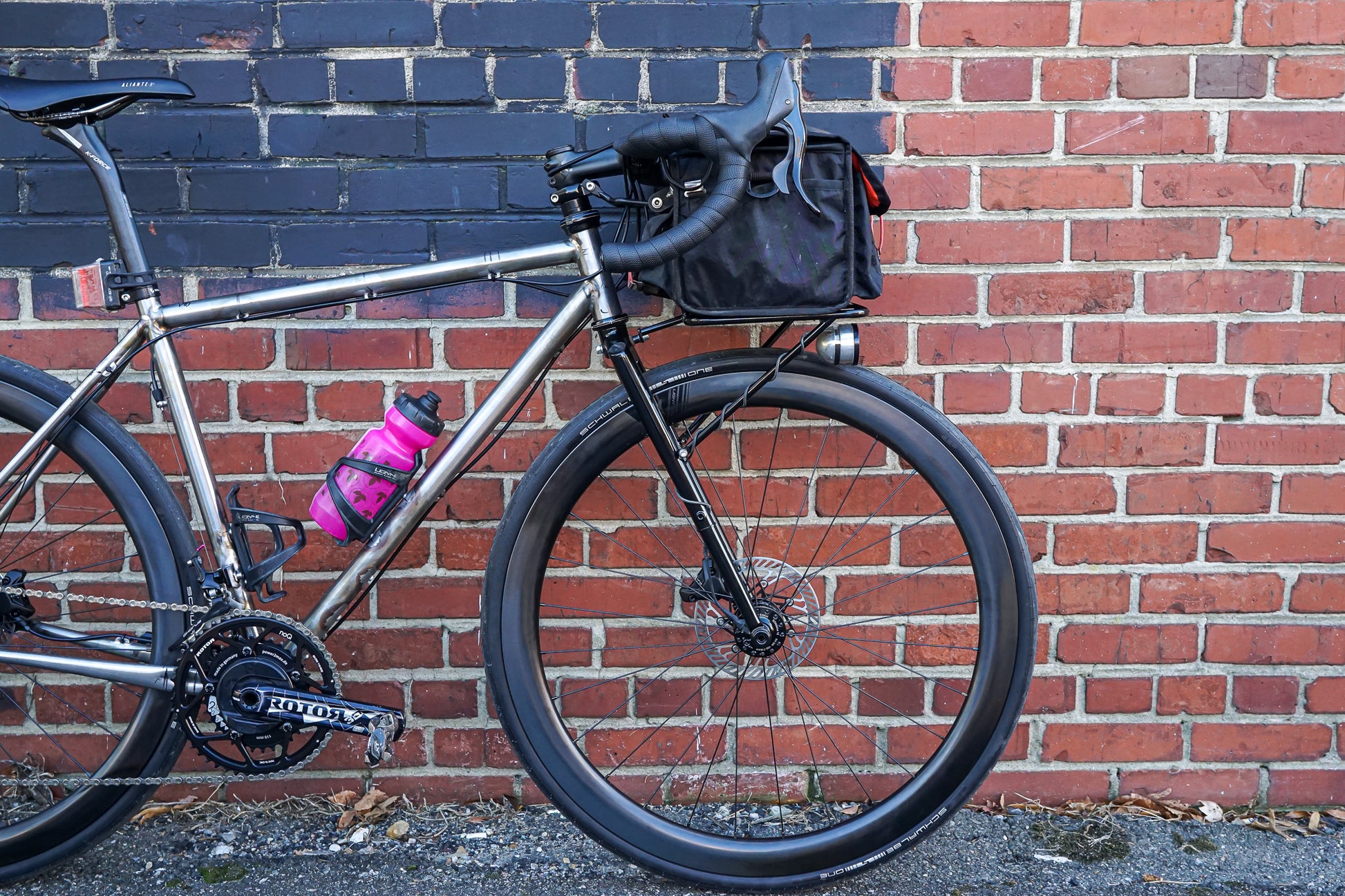

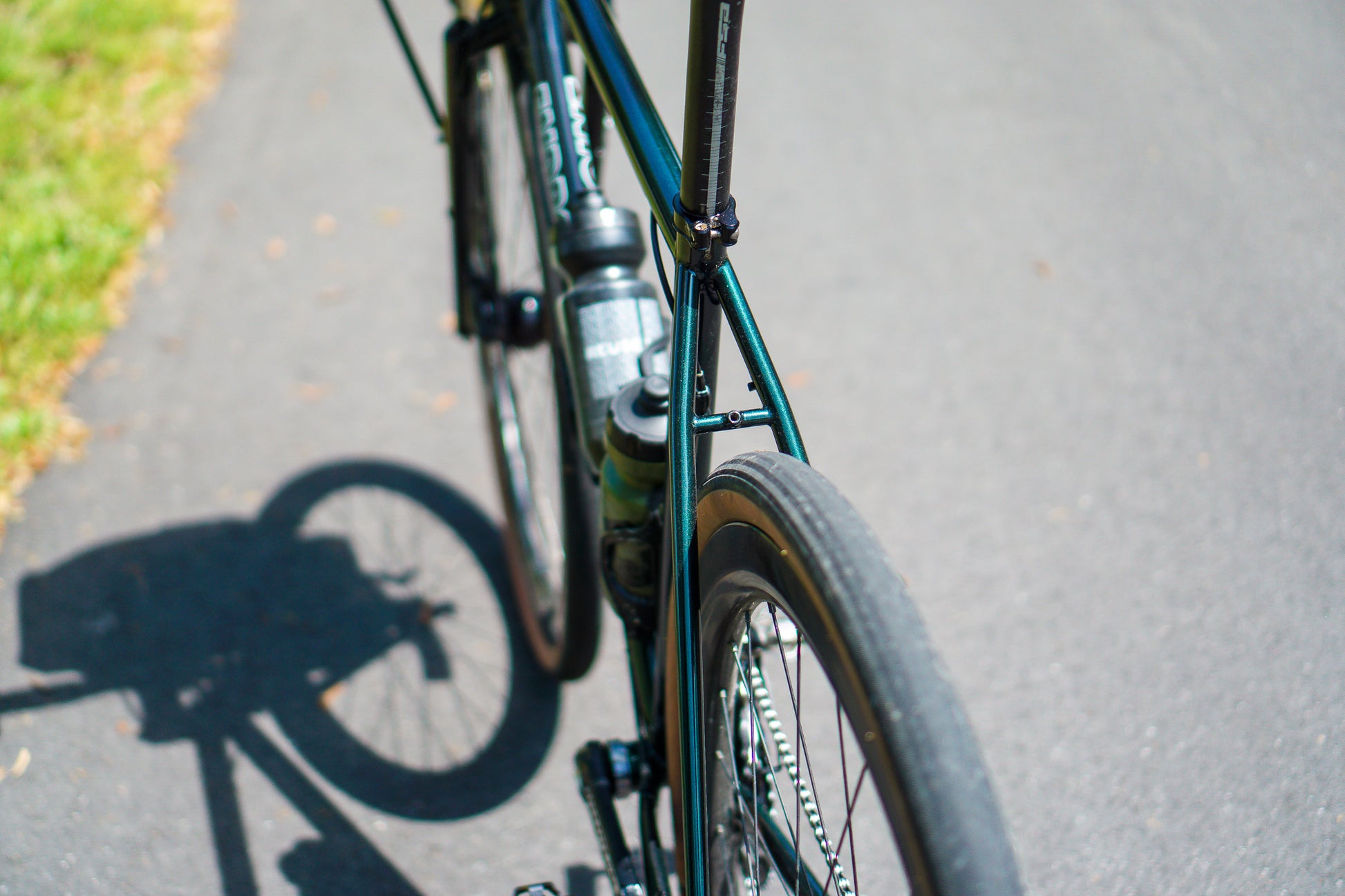

Night Moves has rear triangle and fork mounts for fenders and racks and is equipped with three bottle cages, mounted low to free up enough space for a frame bag
Fork Upgrade
Fork Upgrade
For those who want to forego the extra luggage (and low-trail design), the Night Moves can be equipped with a carbon fork (700c wheels only) for an upcharge making it an equally capable endurance road bike and plays well with 700x28-38mm tires.
Fork, Headset, Seat Collar Included
Fork, Headset, Seat Collar Included

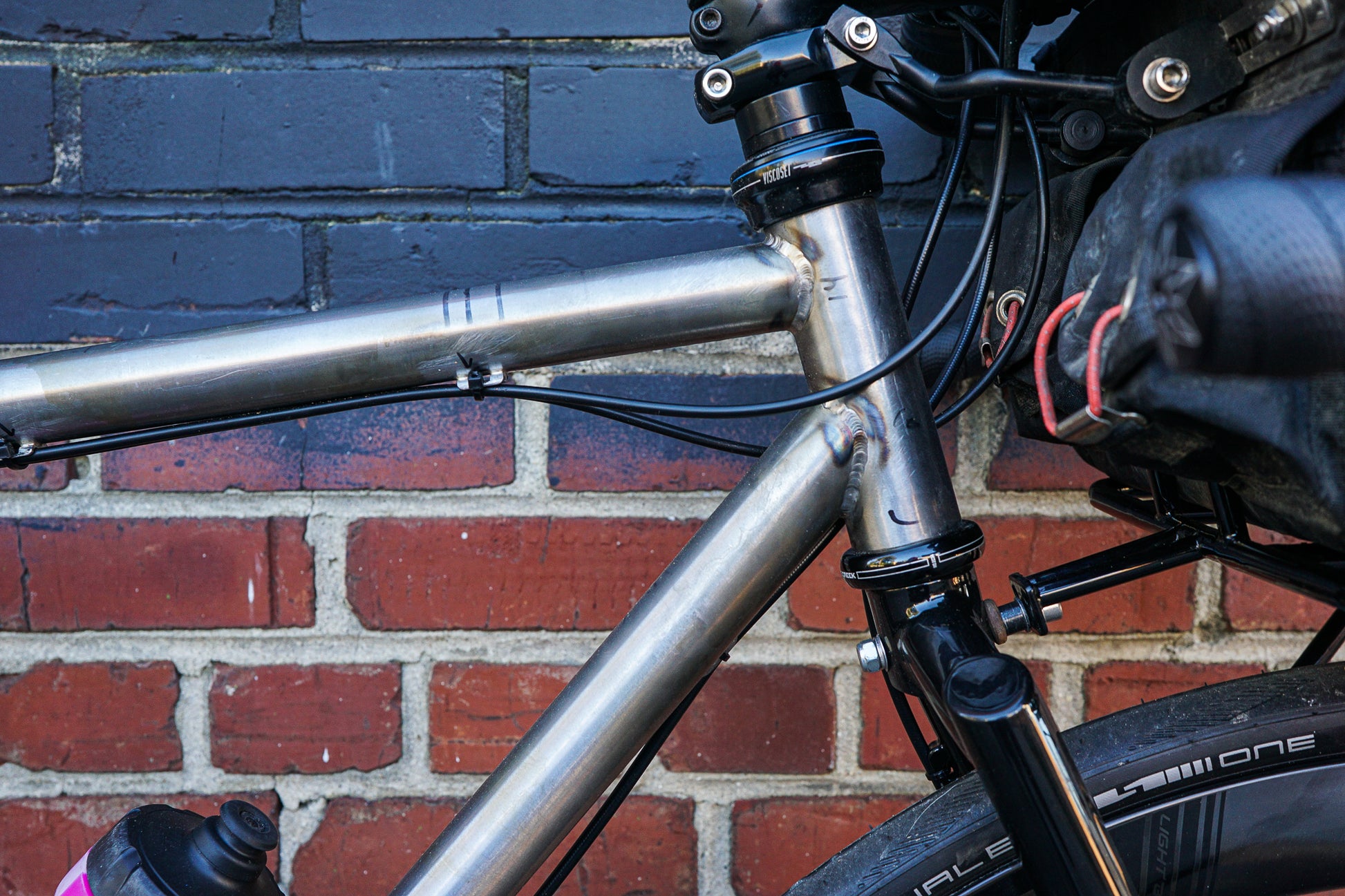

Stock frame build includes a Wolf Tooth headset with the option to upgrade to Cane Creek Hellbender or Chris King Inset7 headset.
Frameset price includes our Search Light steel flat-mount thru-axle fork. Upgrade to a Whisky carbon straight steerer fork for a lighter and faster endurance road bike setup.
Gearing & Drivetrain
Gearing & Drivetrain

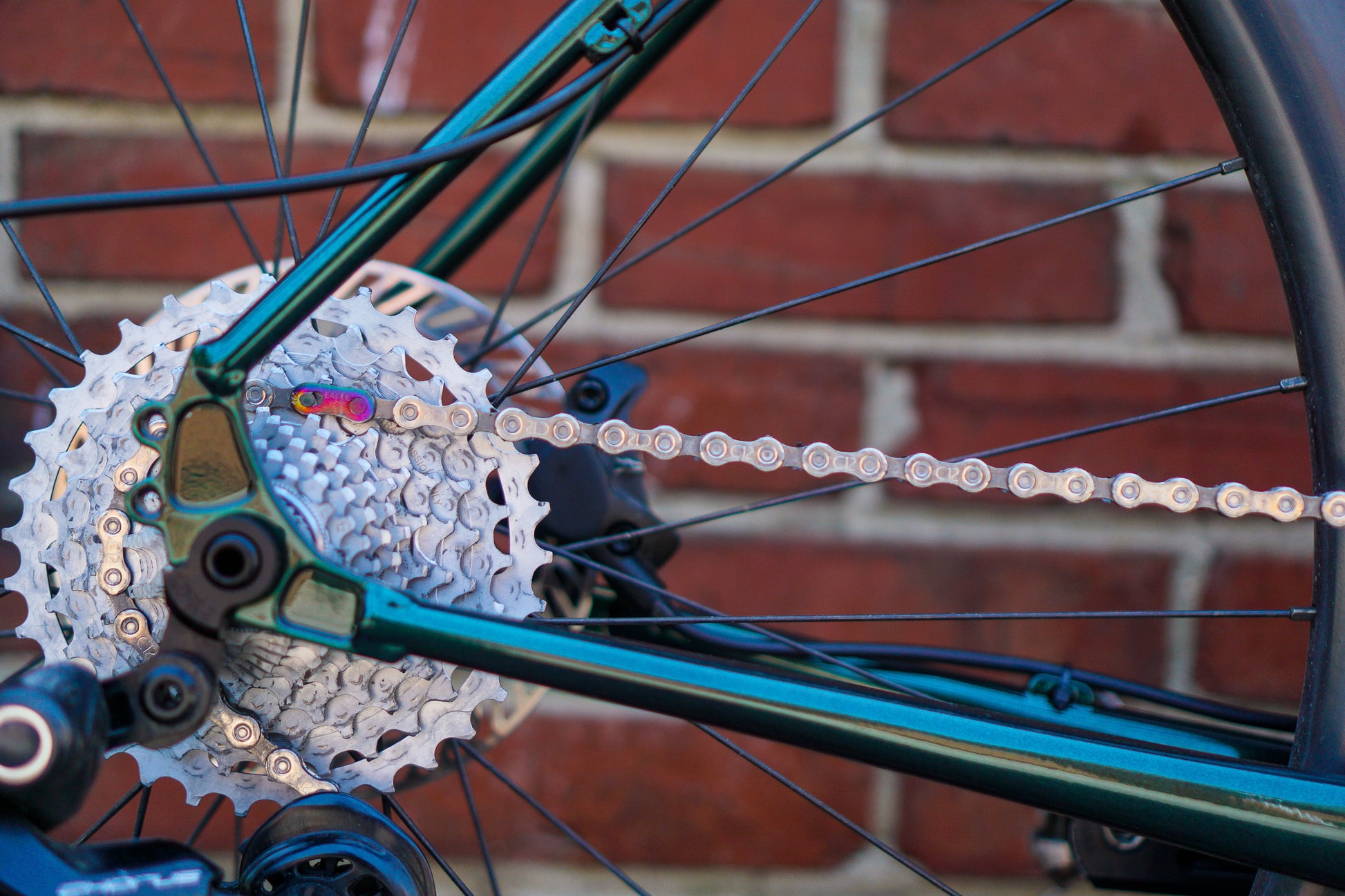

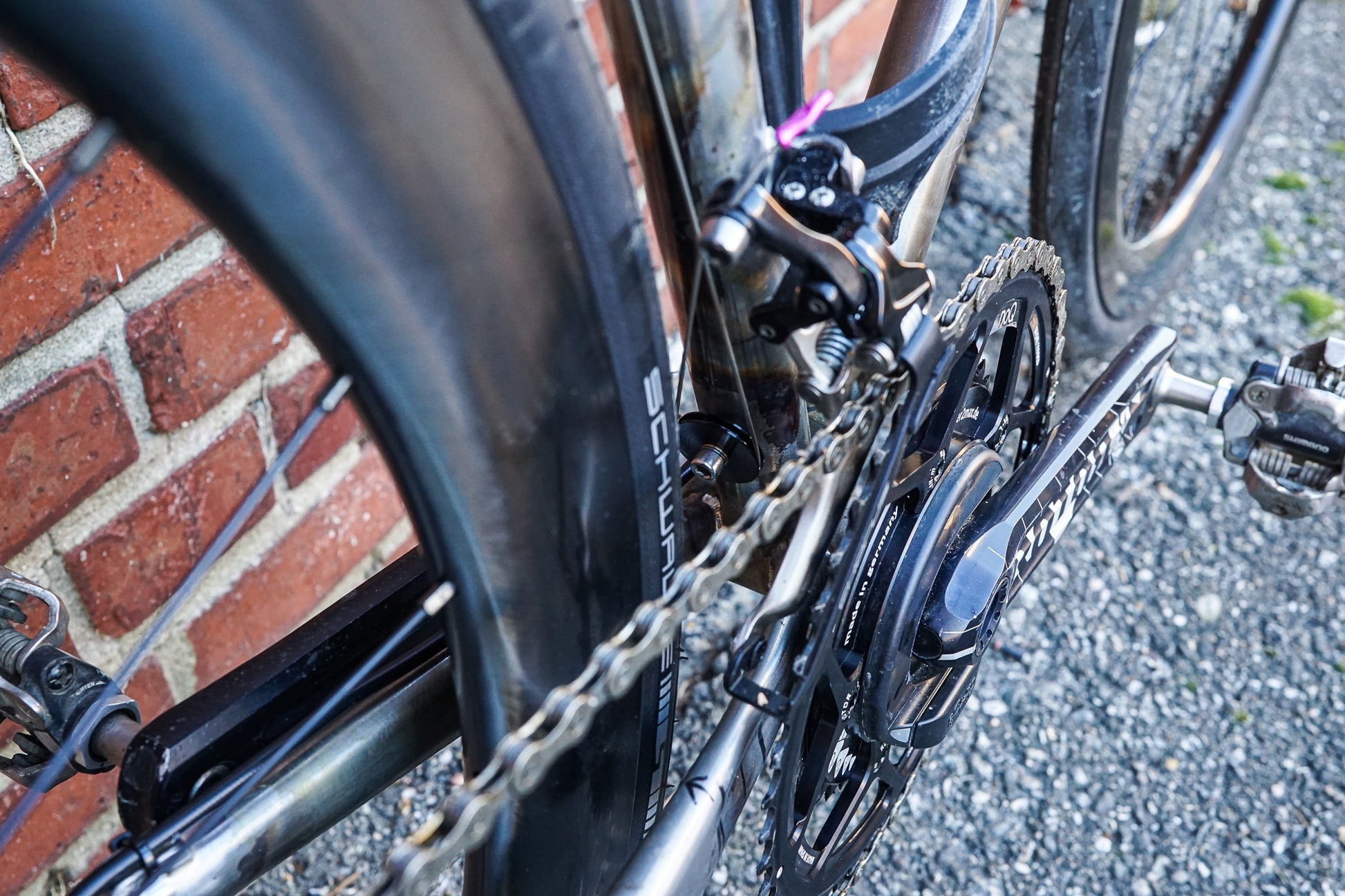

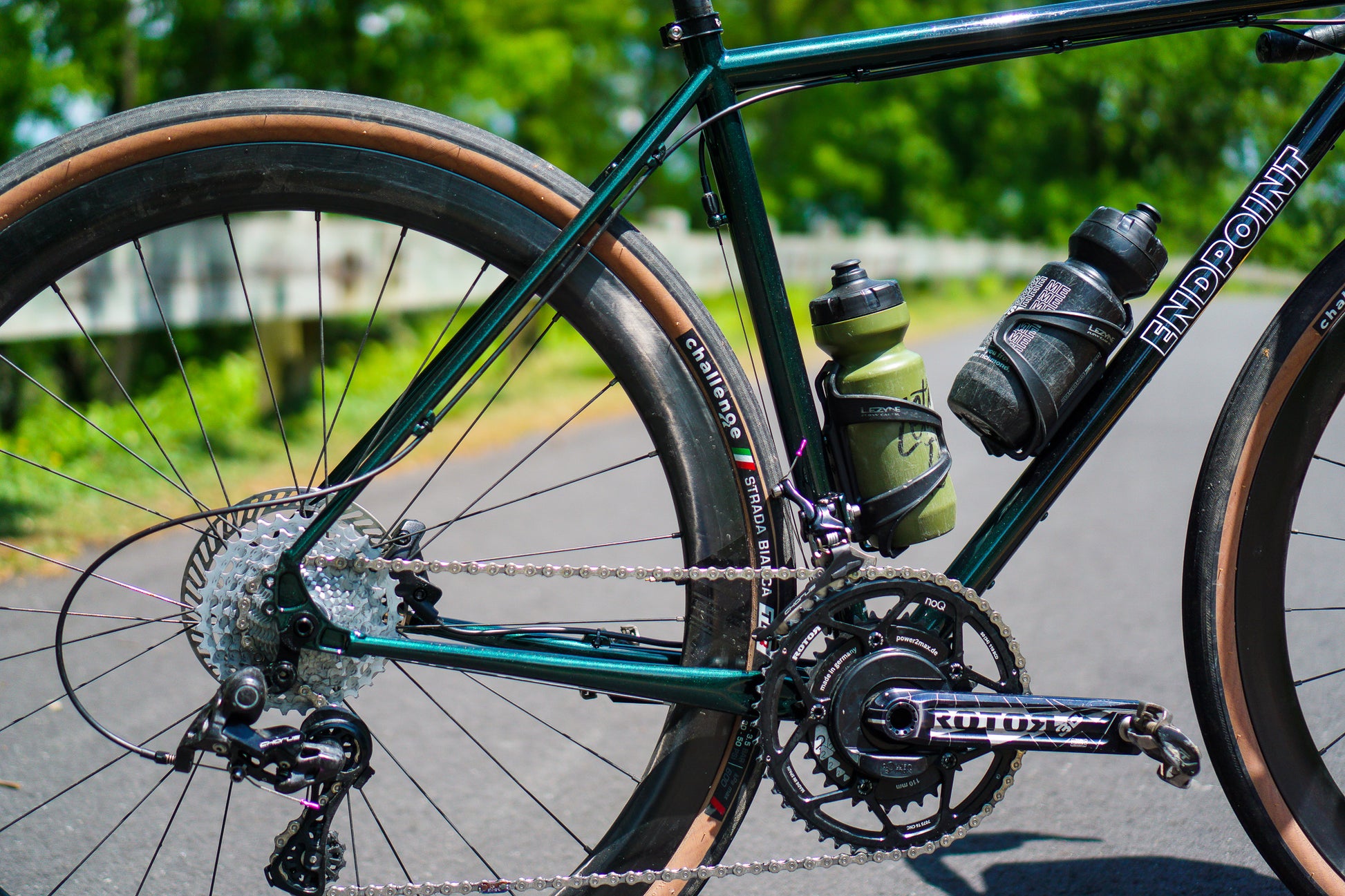

Being optimized for long distances over surfaces you would likely call a "road", the Night Moves is designed for a 2x11 or 2x12 mechanical drivetrain. Front derailleur placement is set to be compatible with a 50/34 compact down to a 46/30 sub-compact. With a 38mm tire, Campagnolo 12-speed front derailleurs and early Shimano 11-speed units can end up being close to the rear tire. Labeled tire size does not always match the effective size, so compatibility may vary.

















All day road comfort
-
Endurance without compromise
This frame is designed with smaller diameter Columbus Zona and Life double-butted tubes for a springy and all-day cush ride that doesn't compromise efficiency
-
Cruise or crit
Choose the Search Light low-trail steel fork, or lightweight carbon fork upgrade for an endurance or race setup. Either option plays well with 700x28-38mm tires.
Frame specs & FAQ
Frame specs
Tubing: Columbus Zona & Life
Max Tire Clearance: 700x38 / 650x48
Rotor Size: 160F/160R

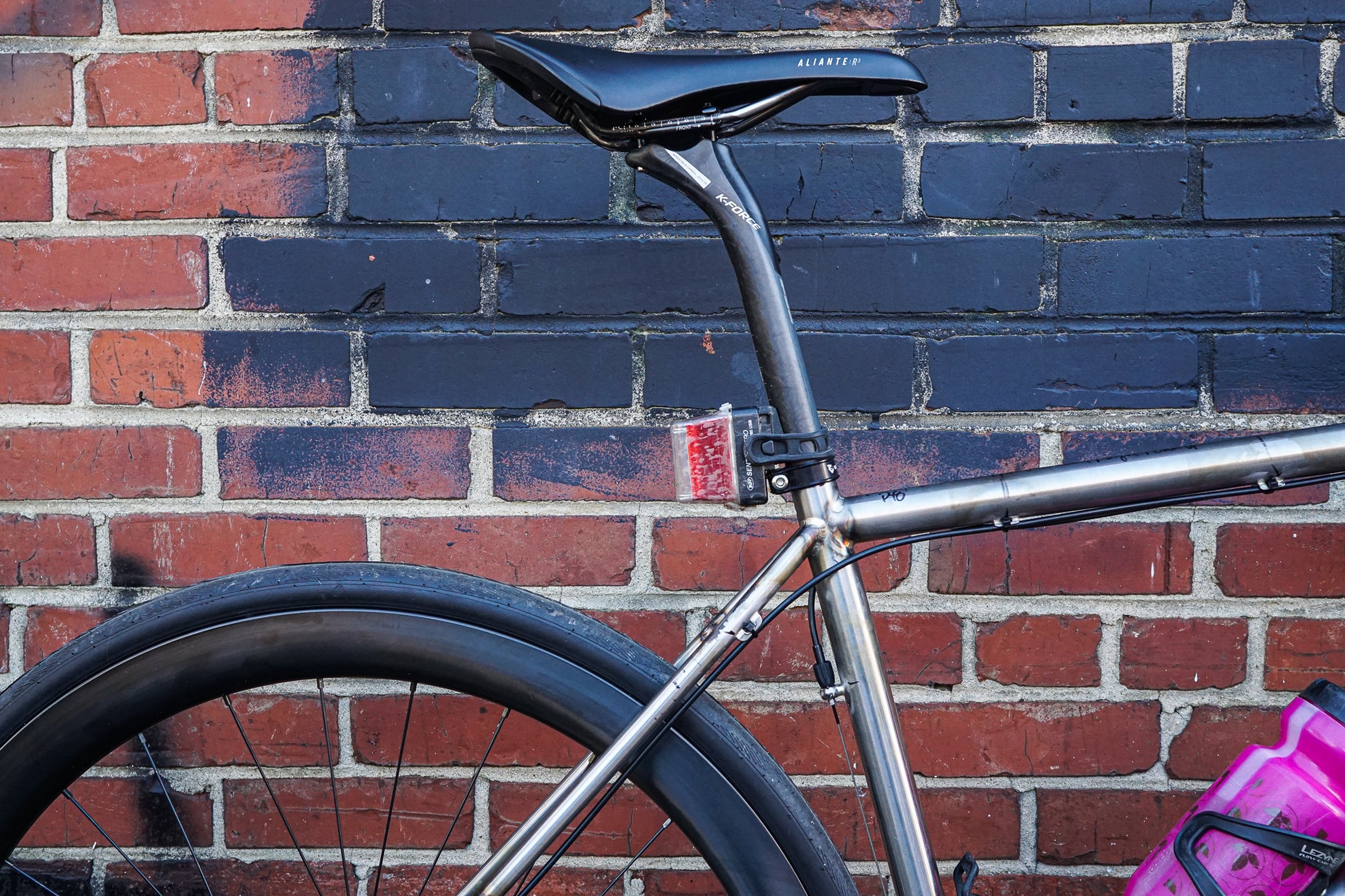

Seatpost & Clamp: 27.2/30.0
What's included with my frameset?
Framesets include steel frame and fork, headset, seat clamp, front and rear thru axles, and bottle bolts.
Do you offer complete builds?
We do offer part kits for complete builds. Place your order for your frameset and select Custom Complete or send us a note after purchasing. We will set up a parts kit build document with you and take payment on your build prior to shipping everything. Complete build wizard
What size frameset do I need?
If you are unsure what size to order you can check see all of our frame geometry and compare with your current ride at Night Moves Geometry on BikeInsights
Frame Geometry
All measurements in millimeters - Download PDF
Size |
SM |
MD |
MD/LG |
LG |
XL |
Reach |
378 |
384 |
390 |
402 |
420 |
Stack |
540 |
571 |
580 |
620 |
640 |
Stack with Wolftooth Headset (16mm upper) |
556 |
587 |
596 |
636 |
656 |
Stack with Cane Creek Viscoset |
563 |
594 |
603 |
643 |
663 |
Effective Top Tube |
533 |
548 |
556 |
580 |
625 |
Headtube Without Headset Cups* |
85 |
117 |
127 |
168 |
189 |
Headtube with Wolf Tooth Headset* |
111 |
143 |
153 |
194 |
215 |
Headtube with Canecreek Viscoset/110 |
118 |
150 |
160 |
201 |
222 |
Seat Tube Center to Center |
450 |
490 |
520 |
550 |
590 |
Seat Tube Center to Top |
485 |
525 |
555 |
585 |
604 |
Fork Axle to Crown |
396 |
396 |
396 |
396 |
396 |
Fork Rake |
70 |
70 |
70 |
70 |
70 |
Chainstay Length |
418 |
418 |
418 |
418 |
418 |
Head Angle |
73 |
73 |
73 |
73 |
73 |
Seat Angle |
74 |
74 |
74 |
74 |
74 |
Bottom Bracket Drop |
72 |
72 |
72 |
72 |
72 |
A randoneurring rocketship
